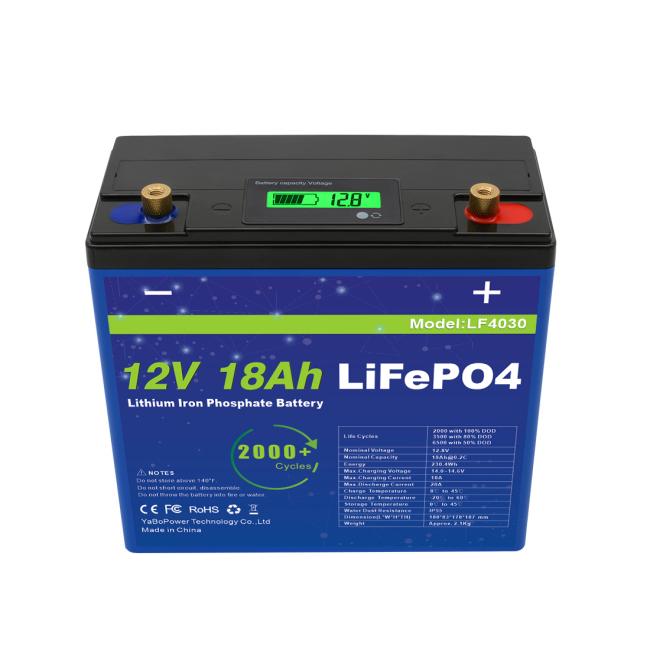

12v 18ah Lifepo4 Battery Lithium Ion Small Discharge Current 9A
Price:
$45.08/pieces 2-49 pieces
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
yabopower
Product Description
New Energy Supplier 12v 18Ah Discharge Current 9A Lifepo4 Battery With Prominent Capacity
Specification
1. Lighter in weight, heavier on power
2. Use a grade prismatic cells. More than 3000 cycle times.
3. Max discharge continuous current 18A
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. Our batteries have passed different safety tests.
6. IP65 Waterproof ratings.
|
Electrical
Characteristics |
Nominal Voltage
|
12.8V
|
|
|
Nominal Capacity
|
18Ah@0.2C
|
|
|
Energy
|
230.4Wh
|
|
|
Internal Resistance
|
≤70mΩ
|
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
Standard Charging
|
Max.Charging Voltage
|
14.0~14.6V
|
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
|
|
|
Charging Current
|
9A
|
|
|
Max.Charging Current
|
18A
|
|
Standard Discharging
|
Discharging Current
|
9A
|
|
|
Max. Continuous Current
|
20A
|
|
|
Max.Pulse Current
|
40A(<3S)
|
|
|
Discharging Cut-off Voltage
|
10.0
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
Structure
|
Cell & Format
|
IFR32700 N60,4S3P
|
|
|
Casing
|
Plastic
|
|
|
Dimension(L*W*H*TH)
|
188*83*178*187
|
|
|
Weight
|
Approx. 2.1Kg
|
|
|
Terminal
|
M5
|
Details Images
Test Chart
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
