Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V
Price:
$1,537.00/pieces 1-49 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
YaBo
Product Description
Product Description
Electrical Characteristics | Nominal Voltage | 51.2V |
Nominal Capacity | 150Ah@0.2C | |
Energy | 7680Wh | |
Internal Resistance | ≤35mΩ | |
Cycle Life | 4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
Self Discharge | ≤3.5% per month at 25℃ | |
Standard Charging | Max.Charging Voltage | 58.4±0.2 |
Charging Mode | At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C | |
Charging Current | 150A | |
Max.Charging Current | 150A | |
Standard Discharging | Discharging Current | 150A |
Max. Continuous Current | 150A | |
Max.Pulse Current | 160A(10S) Can be set up | |
Discharging Cut-off Voltage | 40.0 | |
Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
Water Dust Resistance | IP54 | |
Structure | Cell & Format | LFP34K0K8 34200204(4) (16S1P) |
Casing | Metal | |

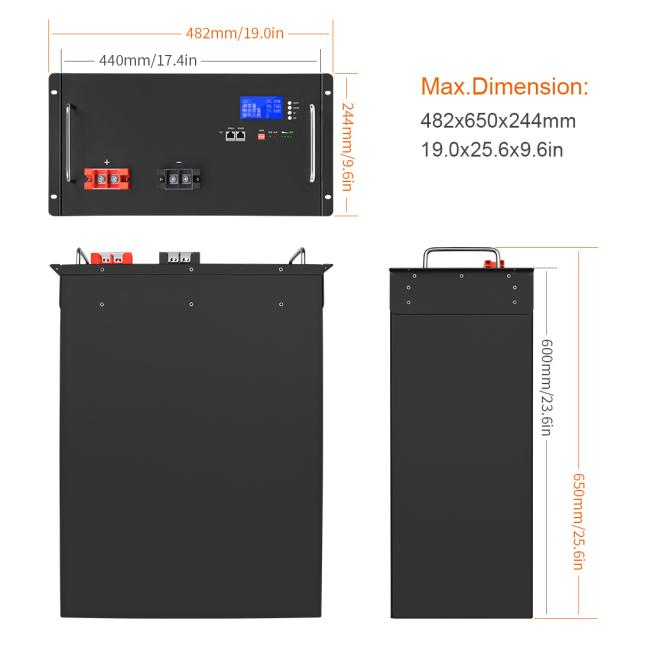

Max.Dimension (L*W*H) | 482*650*244mm（5.5U） | |
Weight | Approx.65Kg | |
Communication Interface | RS485 (8P8C) | |
Display | LCD |
Chart
Feature
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ It can be charged with professional photovoltaic system.
◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.
Application
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
