Steel Coil Trapezoidal Roof And Corrugated Roof Double Layer Roll Forming Machine
Steel Coil Trapezoidal Roof And Corrugated Roof Double Layer Roll Forming Machine
1. Description Of Double Layer Roll Forming Machine
This double layer roll forming machine have two type profiles : corrugated roof + glazed tile roof
The double-layer roll forming machine is that we combine the two equipments together. That is, the floor space is saved, and a double-layer roof roll forming machine cost is lower than two single-layer machines. We can customize two type roof for you to choose:
Trapezoidal roof + Trapezoidal roof
Trapezoidal roof + corrugated roof
Trapezoidal roof + glazed tile roof
corrugated roof + corrugated roof
corrugated roof + glazed tile roof
2. Technical Details Of Double Layer Roll Forming Machine
| Machine Specifications | |
| Weight | About 6.5tons |
| Size | About 6m x 1.3mx1.2m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI PPGI GL PPGL |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | up 13 + down 15 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15m/min |
| Forming rollers material | 45# steel, coated with chromed treatment |
| Cutter material | Cr12MOV, with quenched treatment |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main Components Of Double Layer Roll Forming Machine
| Manual Decoiler | 1 Set |
| Feeding Table | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of Double Layer Roll Forming Machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages Of Our Double Layer Roll Forming Machine
· More than 10 engineers with more than 10 years experience
· More than 10 designers with more than 10 years experience
· 30 professional technician
· Many sets advanced CNC production lines on site
· Passionate Team
· 12 months maintenance and whole life technical support
6. Application Of The Double Layer Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Sri Lanka, Peru, Chile, etc.

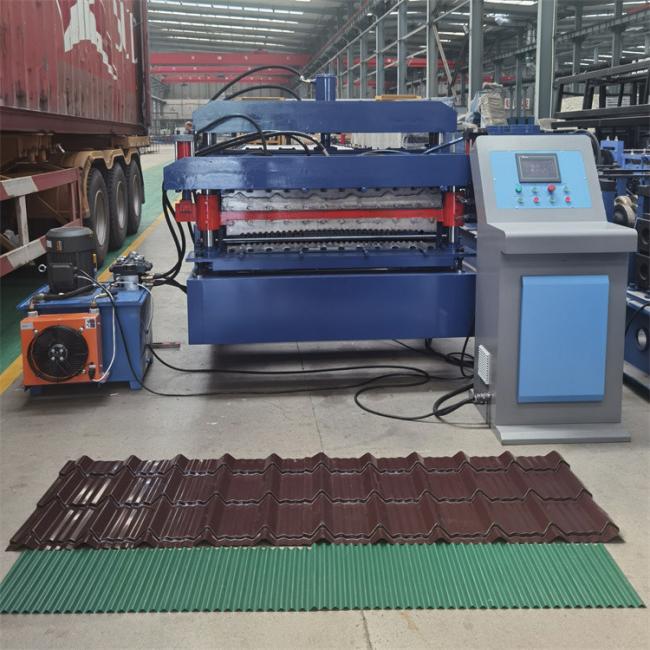

7. Product photos Our Double Layer Roll Forming Machine
8. FAQ
Q. How to get a quotation?
A:1. Give me the profile drawing and the thickness of your material it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own profile drawing, we can recommend some models according to your local market standard.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q:How to visit our company:
A:Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
Q. What’s your standard trade terms ?
A: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
