1. Description of roof cover roll forming machine:
The machine is mainly used to produce Ridge Cap Profiles, which is used to construct the buildings together with the step-tileroof panels.The designing of machine is reasonable; the technology is advanced; high performance stability; the productivity ishigh and can make economical benefit.Produced ridge cap profiles have beautiful design and long service life. The production lineincludes Un-coiler, feeding section, roll forming machine with protect guard, hydraulic pressing or hydraulic post cut device, PLCcontrol system and so on.
2. Technical details of door shutter roll forming machine:
| Machine Item | Specification | ||
| 3Ton*500mm Hydraulic un-coiler | Hydraulic system for expanding coil inner hole;Pump motor:3.0KW; | ||
| Frequency Inverter for regulating turn speed;Motor:4KW | |||
| Coil Inner-diameter=510±30mm. Coil Outer-diameter Max. 1300mm; | |||
| Taper wedge expanding system | |||
| Load Capacity: Max. 5 Tons; Coil Width Max. 500mm; | |||
| Automatic stop device with limited switch as assistance to control stop/start rotation | |||
| Self-contained electric controller, out of control system of the complete line | |||
| High Quality Roof Top Metal Ridge Cap Roll Forming Machine | Feeding section with guide | ||
| Gear/Sprocket driving, 18-step to formsign | |||
| Rollers material 45# Steel, CNC lathes, fine polished, hard Chrome Coated | |||
| Shafts material 45# Steel, Diameter 75mm, Precision Machined, fine Polished | |||
| Main motor =5.5KW, servo motor | |||
| Max. Line speed of roll former:10-15/min | |||
| Hydraulic Cutting Device | Stop to press/cut, no blanking cut | ||
| Cutting tool material: Cr12, Heat treatment | |||
| Hydraulic unit, Pump motor =4KW | |||
| PLC Control System | Control the quantity,punching & cutting length automatically | ||
| Combined with: PLC (Siemens), Touch Screen (Siemens),Inverter(Schneider), Encoder (Omron), etc | |||
| Cut-to-length tolerance≤±2mm | |||
| 24V Control voltage | |||
| Product Table | Un-powered, 3 meters long | ||
3. Main components of door shutter roll forming machine
| No. | Each Part Of The Line | Quantity | Function And Usage |
| 1. | 3 Ton Uncoiler / Decoiler | 1 set | Hold the steel coils and unwind the coils |
| 2. | Ridge Cap Cold Roll Former | 1 set | Roll form the material into required profile |
| 3. | Punching and Cutting Device | 1 set | Punch ribs on formed ridge cap and cut to desired length |
| 4. | Run Out Table | 2 sets | Support ridge cap when it exits the machine |
| 5. | Electric Control Cabinet | 1 set | Highly automatic with PLC control system |
| 6. | Hydraulic Station | 1 set | Hydraulically powered for punching and cutting |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
This machine is widely used in the production of the ridge caps

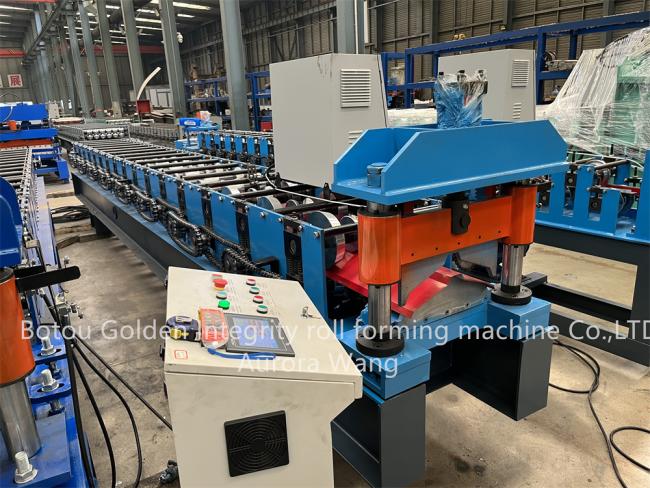

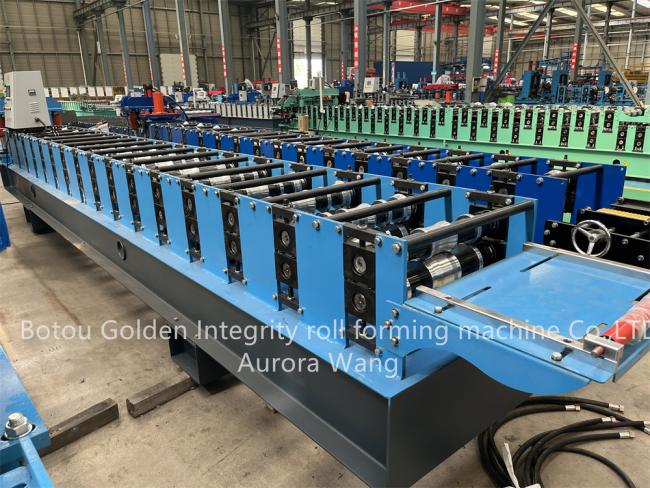

7. Product photo
