2022 year popular sell galvanized steel roofing barge board cover ridge cap roll forming machine with factory price
2022 year popular sell galvanized steel roofing barge board cover ridge cap roll forming machine with factory price
1. Description of roof ridge cover cap roll forming machine:
Ridge cap roll forming machine popular sell in many countries. Product thickness common between 0.3-0.8mm, material use PPGI material.Machine work speed reach 18-20 m/min.
2. Technical details of door shutter roll forming machine:
| Part Details | Item Name | Specification |
| Material | Raw Material | PPGI material |
| Thickness | 0.3-0.6 mm | |
| Machine | Roller Station | 14 |
| Shaft Material | 70 mm | |
| Shaft Material | 45# steel with 0.05mm chrome | |
| Roller Material | 45# steel with 0.05mm chrome | |
| Machine Size | About 4.5*1*1.3m | |
| Machine Weight | About 2 ton | |
| Machine Color | As customer request | |
| Working Speed | 3-8 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting Tolerance | ± 1mm | |
| Material | CR12 | |
| Operate | Hydraulic cutting | |
| Power | Driving Way | Chain 1 inch |
| Main Power | 4 KW | |
| Pump Power | 5.5 KW | |
| Voltage | 380v 50hz 3P, or Customize as Customer' request | |
| Control System | PLC Brand | Delta made in Taiwan |
| Screen | Touchable Screen | |
| Language | Chinese, English or Add customer' need | |
| Decoiler | Operation | Manual |
| Weight Capacity | 3 ton | |
| Price | Free as gift | |
| Receiving Table | Operation | Manual |
| Length | 3m | |
| Price | Free as gift |
3. Main components of door shutter roll forming machine
| No. | Each Part Of The Line | Quantity | Function And Usage |
| 1. | 3 Ton Uncoiler / Decoiler | 1 set | Hold the steel coils and unwind the coils |
| 2. | Ridge Cap Cold Roll Former | 1 set | Roll form the material into required profile |
| 3. | Punching and Cutting Device | 1 set | Punch ribs on formed ridge cap and cut to desired length |
| 4. | Run Out Table | 2 sets | Support ridge cap when it exits the machine |
| 5. | Electric Control Cabinet | 1 set | Highly automatic with PLC control system |
| 6. | Hydraulic Station | 1 set | Hydraulically powered for punching and cutting |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
This machine is widely used in the production of the ridge caps

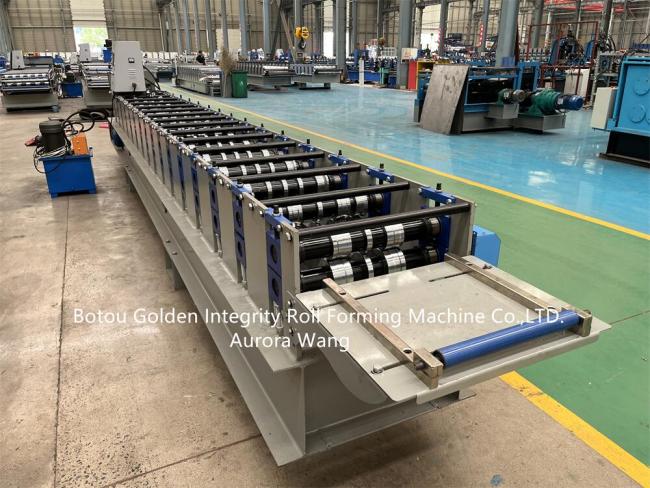

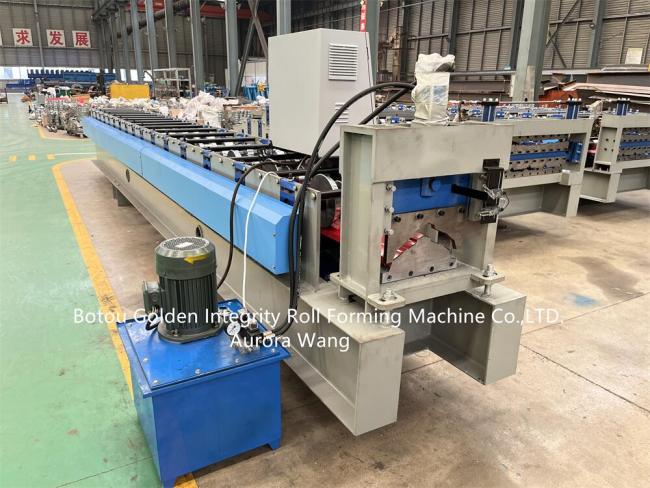

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
