China c89/140 two in one light gauge steel machine light steel frame machine FOR VILLA BUILDING for sale

c89/140 two in one light gauge steel machine light steel frame machine FOR VILLA BUILDING

Price Negotiable

Price: 45000-58900USD

MOQ: 1

Delivery Time: 30-60 days

Brand: JCX

Product Description

C80/C140 Two in one C89/140 TWO IN ONE LGS steel framing machine for villa house with software

Highlight of our machine

1)less power consumption(7.5kw servo motor power,3.75kw hydraulic pump)high productivity,:total line speed 50 meters/minute(punching speed:15 meters/minute),great breakthrough of traditional machine concept,machine will not be stuck while

forming,less rollers,but can make perfect product.

Easy to transport.

2)one encoder is used by the whole line,to control main machine and printer.only one signal is accepted to make sure punching and length accuracy.

3)we use synchronous drive to make sure that cutting,web rib,notch cutting are more precision.

Our light gauge steel house framing is an innoviated machine with vertex BD program.

We have various types for C60/C70/C80/C89/90/140/150 OR EVEN C200

Single model or two /three types in one also avaialable.

00:03

00:34

Specification

Decoiler	max. weight capacity	3 tons
	inner diameter	450-530mm
	out diameter	1300 mm
	type	electric decoiler
	running method	automatic
Roll Forming System	weight	about 3 tons
	number of rollers	with 8 groups and 4 groups' correctional rolers
	transmission method	gear and chain
	brand of main motor	Invet
	powerof main motor	7.5 kw
	material of rollers	Cr12 with heat treatment
	material of shaft	40 Cr with vacuum heat treatment
	material of cutter	Cr12mov
	productivity of machine	50m/minute with out punching, 0.5-0.6 tons/hour
	tolerance of punching hole	+/- 3mm length distance:+/-0.5mm straightness accuracy: 0.3mm
	brand of inject printer	SOJET double head printer
	highlight	some parts of the machine we make innovation to make make use more long time and more stronger
Control system	Brand of PLC	Delta
Hydraulic system	power	5.5kw
Receiving table	size	4 meters long
After-sale services	warranty	one year
	training items in China freely	operation training and finished products installation training
	machine maintenance	immediate feedback and use real-time communication to solve problems and engineer avaliable to overseas

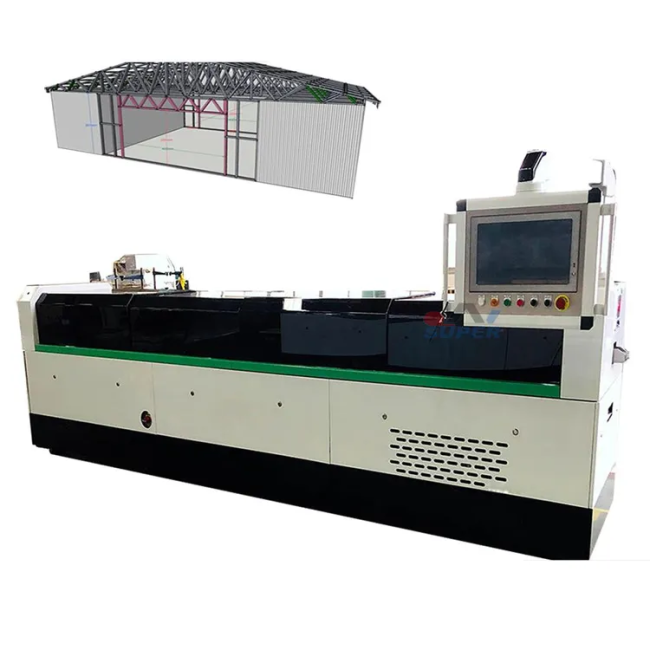

Machine picture:

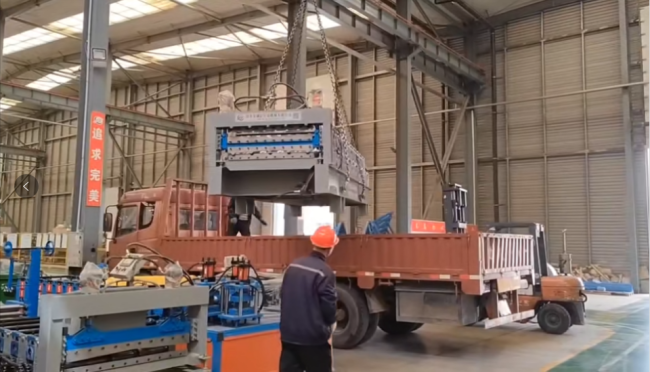

Packing & Delivery

Sea worthy standard package: covered with plastic film, fixed into 20'gp container
