5kw Floor Decking Roll Forming Machine 10-15m/min Roofing Metal Forming Machine
Galvanized Steel floor decking roll forming machine roofing metal fully automatic
1. Description of floor decking roll forming machine:
- The floor decking roll forming amchine produced the steel decks are flat, high precision within 1.5mm,if you are interest thick raw material ,please contact me.
- Use Delta PLC operating system with stable performance, operation is easy, as long as you set the length and quantity,the PLC can meet your require
- The machine speed is 10-15m/min.
Our factory is manufacturing high quality floor decking roll forming machine, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of floor decking roll forming machinery:
| floor decking roll forming Machine Specifications | |
| Weight | About 8tons |
| Size | About 8mx1.2mx1.3m(length x width x height) |
| Color | Machine Main color: blue or can as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils,color steel |
| Thickness | 0.8-1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 19stations |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of floor decking roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
- Our factory have 5 engineers with more than 20 years experience
- We have 30 professional technician
- we have 20 sets advanced CNC production lines to produce the machine rollers
- We have professional designers and professional training,and have professional equipment, in this case we can provide professional machines.
-
We are very rigorous in every tiny detail,including raw material and making machines.
6. Application
This machine is widely used in the production of the roof and floor systems.

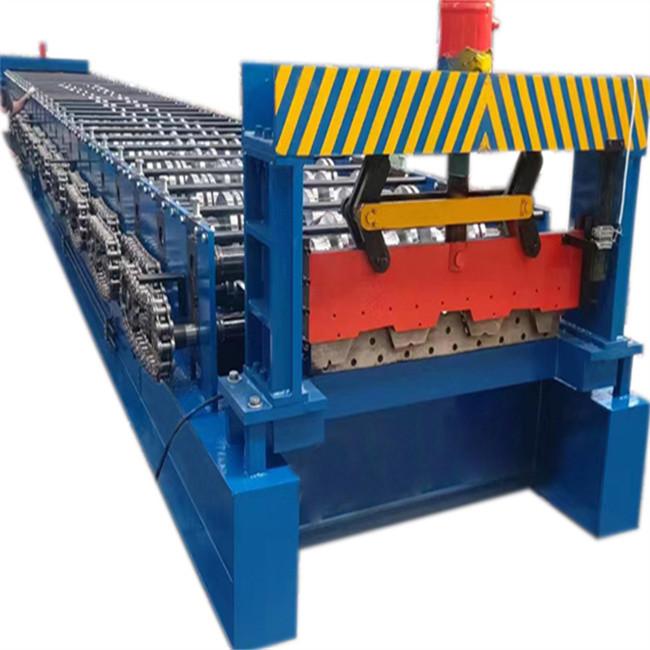

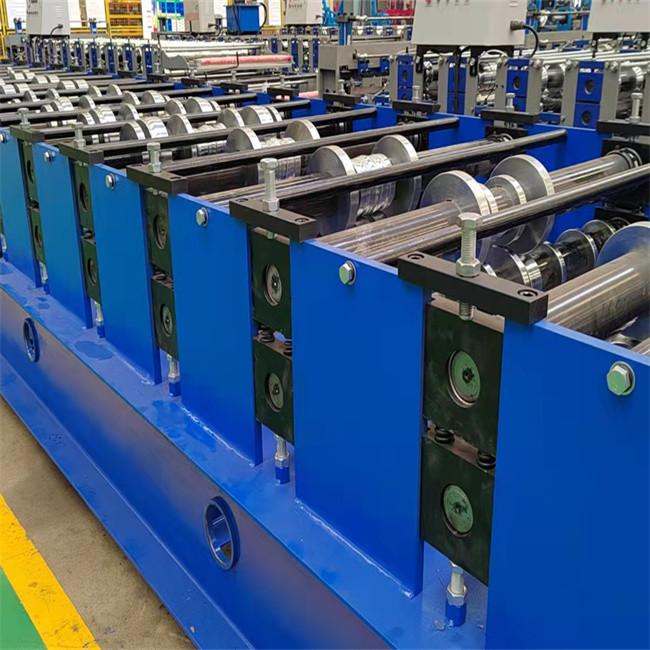

7. Product photo
FAQ
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Welcome to inquiry.
