1220mm Barrel Corrugated Sheet Forming Machine For Construction Material
Fully automatic 1220mm barrel roofing sheet forming machine for Construction Material
1. Description of corrugated sheet roll forming machine:
The barrel corrugated forming machine is mainly driven by gear,the thickness is 0.1mm-0.6mm,it can produce the thin raw material ,is very popular in all the world.
The machine can produce the raw material length is :3000mm,4000mm,8000mm and others ,if you need others length ,please contact me.
Our factory is manufacturing high quality corrugated sheet roll forming machine, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of corrugated sheet roll forming machinery:
| Corrugated sheet roll forming Machine Specifications | |
| Weight | About 5 ons |
| Size | According to your sheet meters |
| Color | Machine Main color: blue or can as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.1mm-0.6mmmm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Roll Forming Speed | max 12/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5Kw |
| Electric voltage | According to customer’s requirement |
3. Main components of corrugated sheet roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
- Our factory have 5 engineers with more than 20 years experience
- We have 30 professional technician
- We are a manufacture of 25 years experience.We have many rich designing and making experience. We can give you the best
machine solution according to your situation
-
We have completed production system. We have more than 20 sets of CNC machines which can support the machine rollers quality.
-
This machine is widely used in the production of the roof and wall Construction Material ,ect.

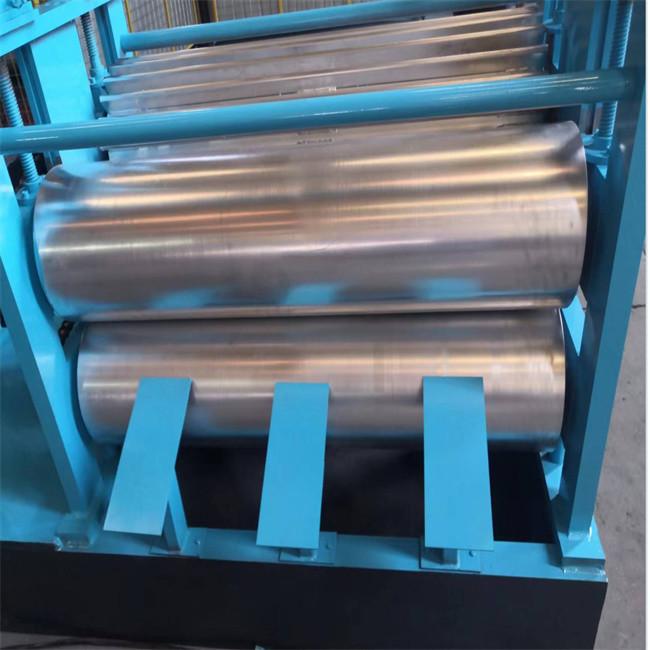

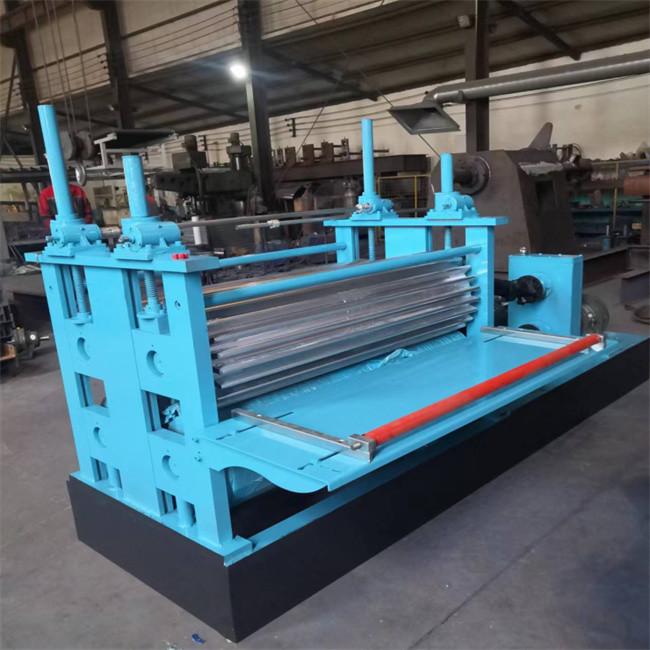

7. Product photo
8. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer.
Q: Does your company provide installing and training overseas?
A: Yes,we have. Overseas machine install and worker training services are optional
Q:Can i receive a good quality machine ? Same with my wanted ?
A:Yes, of course sir/Madam. We will do the machine according to your profile. we will confirm with you about the profile again before producing the machine. Then, after the machine finished, we will test the machine and we will check the machine through the video call.
Welcome to inquiry.
