380V Roller Shutter Door Forming Machine 0.5-0.8mm Thickness
Automatic Galvanized Steel Roller Shutter Door Cold Roll Forming Machine Product Line
1. Description of shutter door roll forming machine:
Our company are professional product roll forming machines manufacture, we can make pu roller shutter door roll forming machine,
The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system.
The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.
1.This double roller shutter door roll forming machine details is made up of manual decoiler, main molding forming machine, cutting device, PLC computer control, hydraulic system and Simple receiving table.
2.The double layer roll forming machine is stable,no noise,no shake.
3.Our double layer roll forming machine can uses galvanized steel sheet, colored steel plate or galvalume plate as the material plate. /GI PPGI GL PPGL
4. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
2. Technical details of shutter door roll forming machine:
| Machine Specifications | |
| Weight | About 3.5tons |
| Size | About 5.6mx1.2mx1.3m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.5-0.8mm or 0.8-1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 11-12 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of shutter door roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Shutter door roll forming machine Application
This machine is widely used in the production of the door shutters.

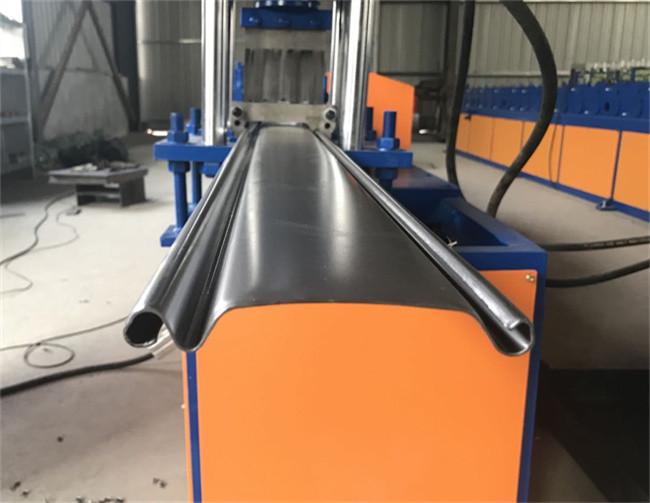

7. Shutter door roll forming machine Product photo
8. FAQ
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Q: Why your price is higher than others?
A: As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
Welcome to inquiry.
