Portable house construction lgs light Gauge Steel Framing Machine steel frame
Portable house construction lgs light Gauge Steel Framing Machine steel frame
1. Description Of light gauge steel framing Machine
Light gauge steel framing making machine consists of manual decoiler, automatic material leveling part, mainly rolling form machine, A set of automatic punching device, cut device, received table and control cabinet vetex BD.
The machine is customized according to you. The models in normal use now are C89 and C140. Light gauge steel roll forming machine not only be produced in factory, but also can be set in one container and transported to a remote construction site for onsite production according to your request.
If you are interst, please contact me.
2. Technical Details Of light gauge steel framing Machine
| Machine Specifications | |
| Weight | About 3tons |
| Size | About 4m*0.8mm*1.8m(length x width x height) |
| Color | Main color: Red or as your requirements |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI GL Aluminum |
| Thickness | 0.75-1.2mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | with 8 Groups and 4 Groups' Correctional Rollers |
| Diameter of forming rollers shafts | 50mm |
| Roll Forming Speed | 50-60m/min |
| Forming rollers material | Cr12 with Heat Treatment |
| Cutter material | Cr12MOV |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 7.5kw |
| Electric voltage | According to customer’s requirement |
3. Main Components Of light gauge steel framing Machine
| Manual Decoiler | 1 Set |
|
automatic material leveling part |
1 Set |
| Roll Forming Unit | 1 Set |
| Punching Unit | 1 Set |
| Cutting device | 1 Set |
| Vertex bd | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of LIGHT GAUGE STEEL FRAMING Machine
Uncoiling the sheet--Punching -Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages Of light gauge steel framing Machine
· More than 10 engineers and More than 10 designers with more than 10 years experience
· We have completed production system. And more than 20 sets of CNC machines which can support lots of machine.
· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
· Our machine adopts Taiwan Delta brand PLC control and touch screen, more durable and low failure rate.
· We more carefully to deal with the details. our rollers and shafts, we process 3 times.
6. Application Of The light gauge steel framing Machine
This machine is widely used in the production of the metal roof sheets and wall panel.villa,. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

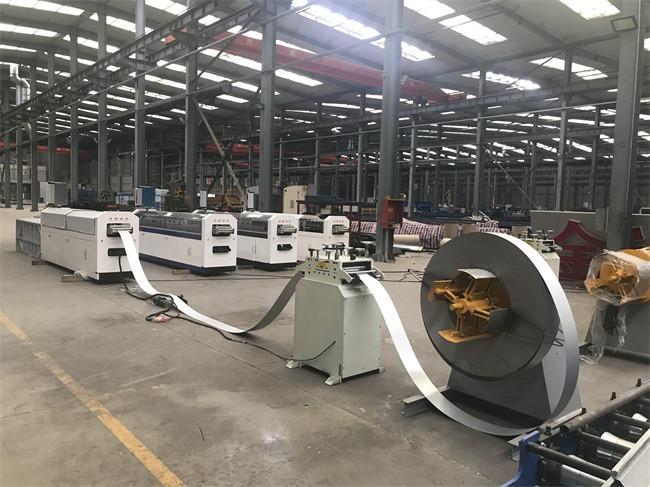

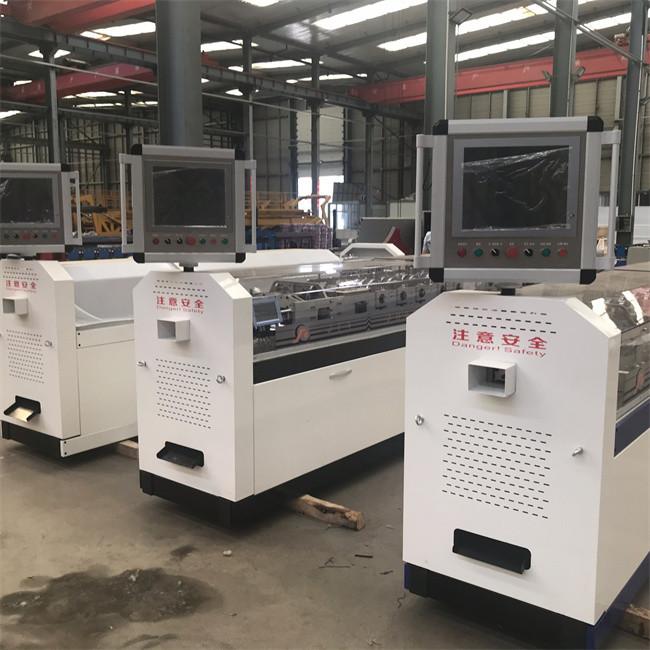

7. Product photos Our light gauge steel framing
FAQ
Q: What is your payment terms?
A: We accept 30% T/T as deposit and 70% T/T as balance before shipping.
We accept 100% L/C at sight
We accept Western Union payments.
Other payment terms you want to pay, please let me know and i will check and reply you.
Q: Do you provide training for my workers?
A: Yes.Of course
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate before shipping.
If you need our engineer to your factory, we will send
Q: How about your after-sale service?
A: We provide 12 months free warranty and free technical support for the whole life about the glazed tile forming machine. During warranty period, if the mahcine parts broken, we can send the new ones freely.
Welcome to inquiry me.
