Buildings Metal Roof Corrugated Sheet Roll Forming Machine ISO9001 CE
Automatic corrugated roof sheet making machine color steel corrugated roll forming machine for sale
1.Corrugated sheet roll forming machine
The metal corrugated roof is widely used for commercial and residential metal buildings, associated with residential and commercial. Corrugated Sheet Roll Forming Machine could be customized designed for its production.
Main Character of Corrugated Sheet Roll Forming Machine
- Simple structure, good appearance since the whole machine is used profiled steel structure and wholly manufacturing after welding, in order to make it running stable and reliable.
- Completely automatic cutting, accurate length, and position trim cutting for the rear of profile sheets, no deformation.
- Easy installation, good performance for manufacturing in the factory.
- Low noise, high efficiency.
Structure of Corrugated Sheet Roll Forming Machine
This corrugated roll forming machine consists of 10 tons automatic decoiler, chain driven transmission, cassette type roller stations, mainframe (including guiding platform), hydraulic cutting device, hydraulic system, electric controlling system and auto stacker.
2. Technical details of corrugated sheet roll forming machine
| Product Name | Item | Description |
| Corrugated Sheet Roll Forming Machine | Production Material(mm) | 1250×(0.3~1.0)×L, PPGI |
| Forming speed | 20 m/min | |
| Number of stations | 18 stations | |
| Roller stations type | Side Wall | |
| Main motor power | 7.5KW | |
| Power of hydraulic station | 3.0KW | |
| Roller material | high-quality GCr15 forged steel with hard chrome-plated hardware HRC 58-62 |
|
| Shaft diameter | 76mm | |
| Shaft material | high-quality steel 45 quenched and tempered after finishing treatment |
|
| Hydraulic station pressure | 10~15 Mpa | |
| Cutter material | Cr12 quenched | |
| Decoiler | 10 Ton Automatic decoiler with loading car | |
| Electronic controlling system | Full-frequency PLC controlling system, error of cutting length ≤ 2mm |
|
| Stacker | 8 meters Auto stacker | |
| Cutting | Post cutting with hydraulic driving |
3.Main components of corrugated sheet roll forming machine
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

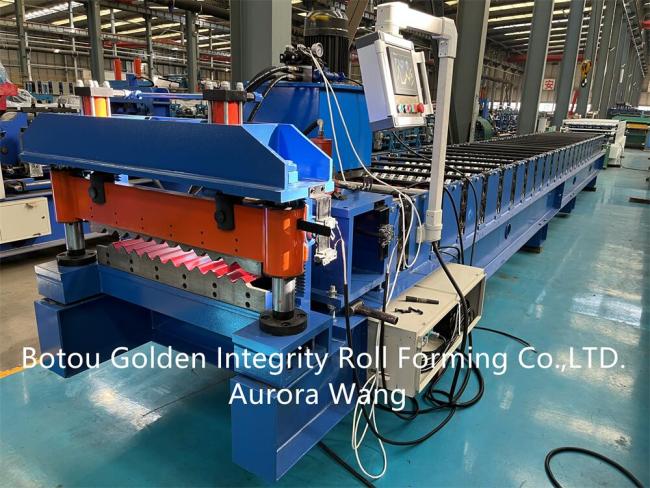

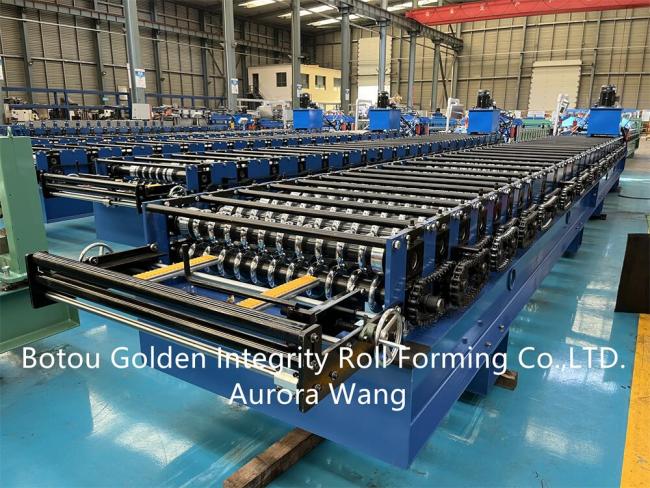

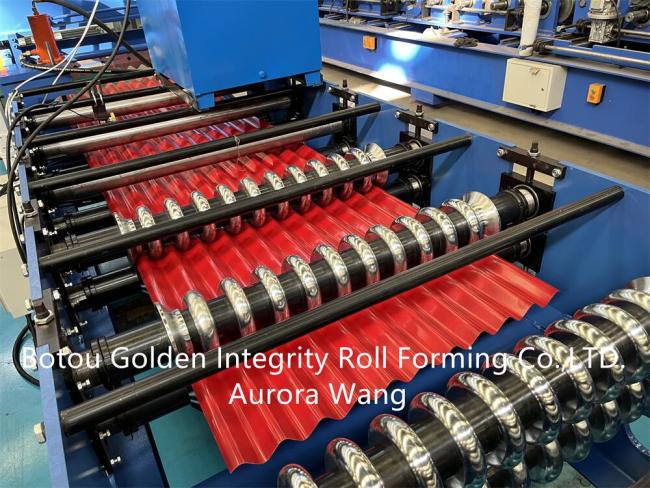

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
