C140 Light Gauge Steel Framing Machine For Animal Husbandry Building
Price:
42,000-48,000USD/set
MOQ:
1
Delivery Time:
30-60 days
Brand:
JCX
Product Description
Product Description
Fast construct large span C140 light gauge steel frame machine for animal husbandry building
Our C140 LGS Framing machine can use to make villa house from 1-8 floors. It also used in moden animal husbandry, Industrial plant construction etc.
Green Building is more and more popuar, as a trend all over the world. It's fast, eco-friendly than traditonal construction, and Fast installation.
Our C140 LGS FRAMING MACHINE ADVATANGES:
- Speed raise to 50m/min,
- Sixth gernation machine, system more stable after several years improvment.
- Memory function: power off and second day can work continue, no waste steel roll.
- New type print machine, One machine control 2 sets print machine, connecting with computer directly.
- Two in one decoiler, more stable, save space, better than manual normal type.
- Hydrulic station improved, low pressure, but larger power, extended machine life
- With automatic lubrication system
Profile drawing of our 140 LGS framing machine:
Machine picture for C140 lgs frame machine:

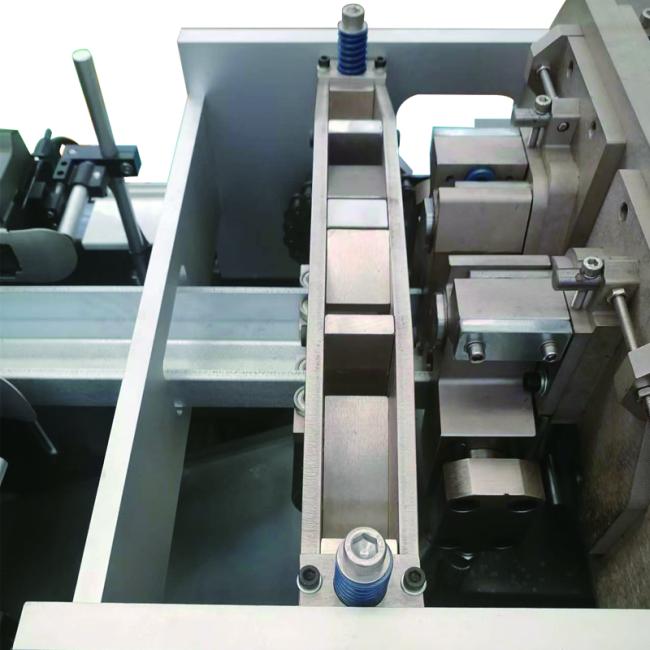

8 working positions (pipeline hole, web hole, small side cutting, fixed hole, chamfering, web shrinkage hole, shearing, bolt hole, etc.)
- Model 1 : service holeetc.
- Model 2 : web notch
- Model 3 : end truss
- Model 4 : triple web hole
- Model 5 : lip notch
- Model 6 : dimple
- Model 7 : swage
- Extra triple hole or edge cutting can be supplier if required.
Final channel
Total 8 working units, but we can also add punching dies as your requirements.
Parameters of c89 lgs framing machine
| No. | Item | Description |
| 1 | Frame and punching dies | Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting |
| 2 | Suitable Material | G300-G550Galvanzied coils or Aluzinc |
| 3 | Thickness | 0.75-1.2mm( CAN ENLARGE TO 2mm) |
| 4 | Size | 140*41mm |
| 5 | Feeding material width | 230mm |
| 6 | Standard Producing speed | 300-700m/h |
| 7 | Max producing speed | 1500m/h |
| 8 | Main motor | 7.5kw INVT BRAND |
| 9 | Hydraulic station | 5.5kw |
| 10 | Voltage | 380V 50Hz 3phases or customized |
| 11 | Hydraulic tank capacity | 120L. ensure over 50% |
| 12 | Hydraulic station | Vane pump.more stable, and low pressure with high strength |
Components of lgs framing machine:
| NO. | Description | Quantity (set) | Remark |
| 1 | 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional | 1 | Put coils and straight the coil |
| 2 | Transmission and hydraulic system | 1 | Induction steel belt |
| 3 |
C89 Roll Forming Machine |
1 | main machine |
| 4 | Double print system | 1 | 1 set, two pcs |
| 5 | Control system | 1 |
|
| 6 | Machine Run-Out Table | 1 | Drawing, you can produce yourself after you getting the machine |
| 7 | Spare parts and tool box | 1 | Full sets of necessary spare parts |
Applications:

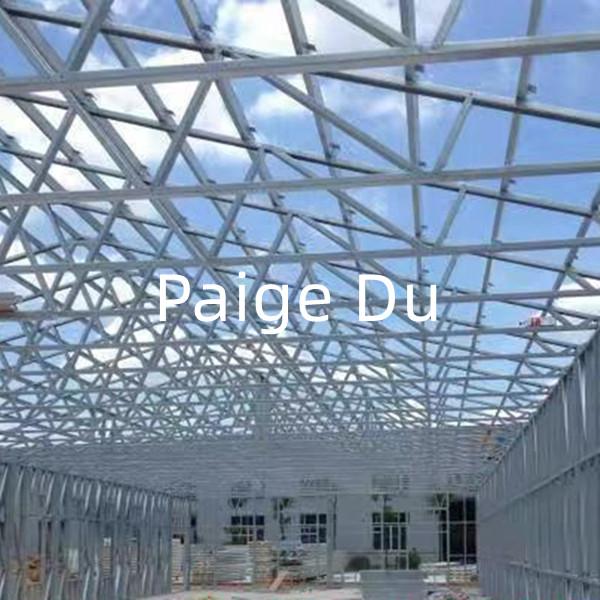

Our lgs steel framing machine can make house roof, floor, wall, truss all.
Automatic lubrication system

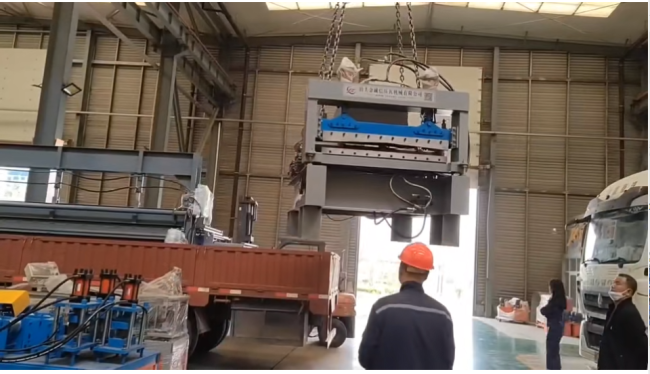

Packing & Delivery
Sea worthy standard package: covered with plastic film, fixed into 20'gp container
RFQ:
1. If your machine include software?
Answer: we can supply machine with or without software, it depends on your requirement.
2. Do you supply training?
Answer: yes, will supply clear manual book and guiding videos along with the machine, and we supply lifetime technogly support, any questions, we can open video to help you directly.
3. How long is the machine warranty?
Answer: 12 month since the machine departure.
4. Have you exported this machines abroad?
Answer: yes, we are leading company and have over 13 years export experance. and this lgs framing machine we have exported to Australia, Greece, Mexico, America, Mogolia etc.
5. Do you have certifications?
Answer: Yes, we have CE ISO certificates, which meet the international standards.
6. Can you make our logo on the machine?
Answer: yes. We can make machine with your Company Logo as required
Well your inquiry.
Paige
Sales mager of Golden Integrity Machine
