7.5kw Light Gauge Steel Framing Machine 380V Keel Roll Forming Machine
Hot selling all over the world steel frame villa light gauge keel roll forming machine
1. Description of roof ridge cover cap roll forming machine:
| Size | C89 |
| Dimension | 4200*800*1100mm |
| Main Servo Motor Power | 7.5KW |
| Hydraulic Motor | 7.5kw |
| Forming Steps | 9Steps |
| Forming Speed | 4-5tons/8hours |
| Voltage | 380V/50HZ/3PH |
| Effective Width | 89mm |
| Material Width | 174mm |
| Flange Height | 38mm |
| Lip | 9mm |
| Material Thickness | 0.6-1.2mm |
| Tolerance for cutting and punching | ±0.5mm |
| Tolerance for forming | ±0.75mm |
| Control System | IPC Computer Controlling System |
| Design Software | Vertex Software |
| Material for All Roller | SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers |
| Material for Shaft | SKD-11 |
| Material for Puncher | SKD-11 |
| Material for Cutter | SKD-11 |
2. Technical details of door shutter roll forming machine:
| 1) Main Forming Machine |
| 2) 3 Tons Electric Uncoiler |
| 3) Servo Motor System |
| 4) IPC Computer Controlling System (Lenovo Laptop) |
| 5) Production Software (1set) |
| 6) Design Software-Vertex,forever using license |
|
7) Hydraulic Automatic Punching Device (Web/Lip Notch,Swage,Service Hole,Chamfer,Dimple,Bolt Hole) |
| 8) Hydraulic Post-cutting Device (Material:SKD-11) |
| 9) Automatic Printing Device |
| 10) Run Out Table (4m) |
| 11) Operation Manual |
3. Main components of door shutter roll forming machine
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
This machine is widely used in the production of the ridge caps

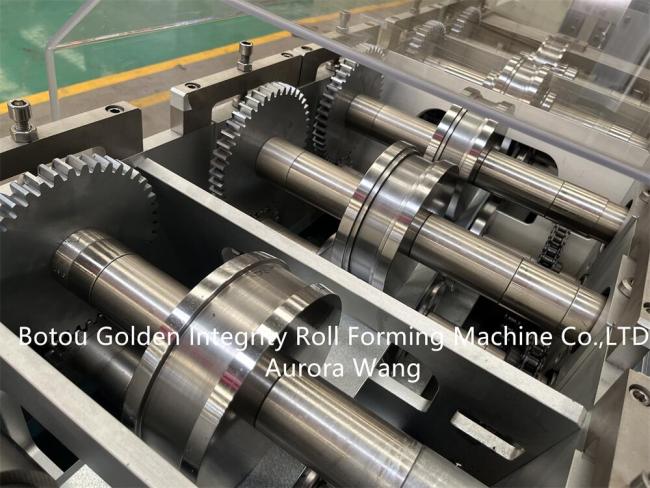

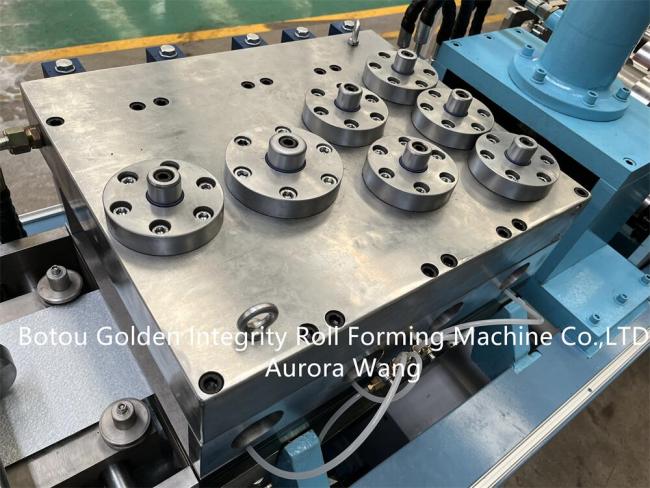

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
