LGS Light Gauge Steel Machine 7.5 KW Servo motor For Integrated House
Fast speed stability LGS Light Gauge Steel Framing Machine For Integrated House With Good Quality
1. Description of roof ridge cover cap roll forming machine:
2. Technical details of door shutter roll forming machine:
| Size | 89*41mm or 140*38mm |
| Thickness | 0.6-1.2mm(G300-G550Galvanzied coils and Aluzinc ) |
| Feeding width | 182mm |
| Standard Producing speed | 300-700m/h |
| Max producing speed | 1500m/h |
| Main motor | 5.5kw Servo motor |
| Power supplier | 380V 50Hz 3phases according to your request |
| Hydraulic station | 7.5kw Siemens Motor |
| Hydraulic tank capacity | 100L |
| Hydraulic cooling | Fan cooling |
| Hydraulic pressure | Manually set |
| Host cordless remote control | Standard |
| Frame and punching dies | Screw hole, chamfer, 15mm web hole, flange cut, 35mm pipe hole, suspension, cutting, |
| Product accuracy+- | 0.5mm |
| CNC inkjet-printer | Video Jet |
| Size | 4700*950*1200mm |
| Weight | 5000kg |
| Color | according to your request |
| De-colier | bearing 2 tonne, automatical decoiler |
3. Main components of door shutter roll forming machine
| number |
Machine Components
|
| 1 | Hydraulic de-coiler |
| 2 | Leveling Device |
| 3 | Punching Device |
| 4 | Roll Forming System |
| 5 | Cutting Device |
| 6 | Online Printer |
| 7 | PLC Control System |
| 8 | Hydraulic Station |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
6. Application
This machine is widely used in the production of the ridge caps

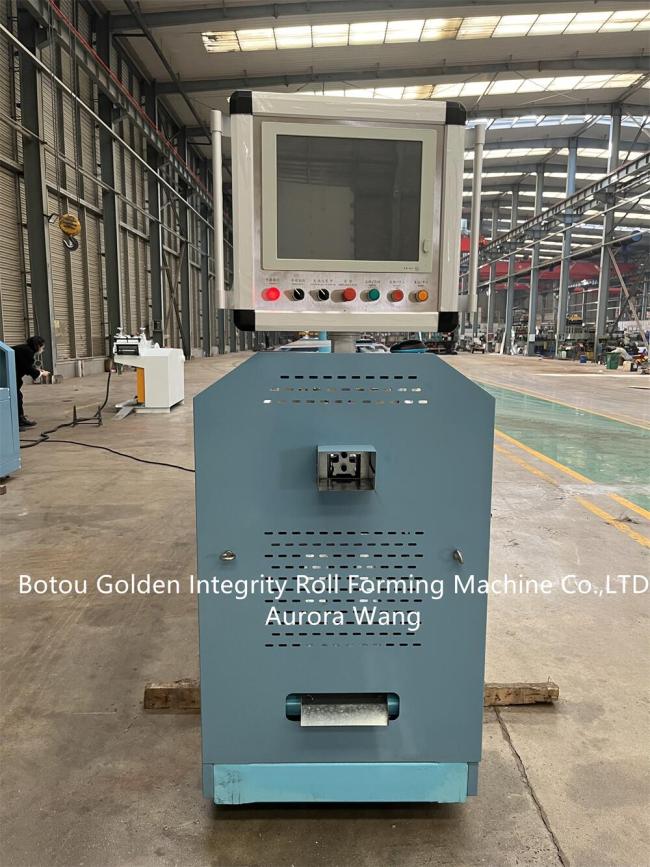

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
