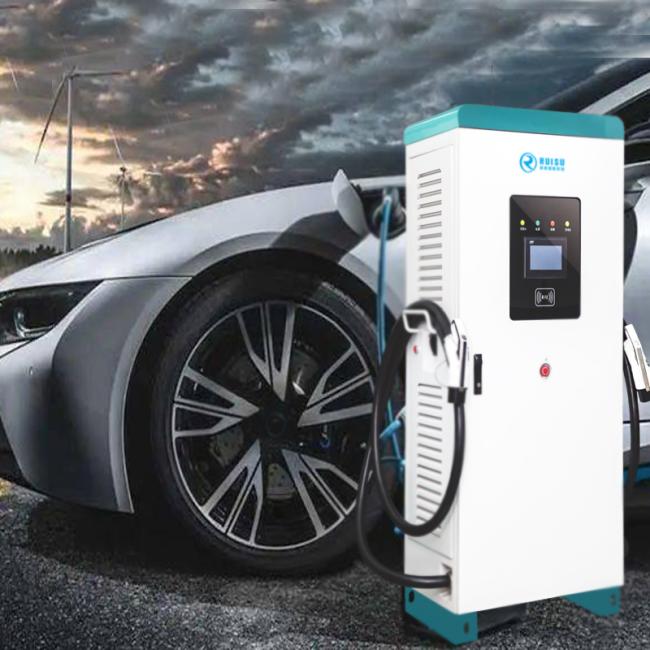

80kw CCS2 DC Universal EV Charging Station 60Hz For Electric Car
Universal 80kw CCS2 Dc Emergency Rfid Ev Electric Vehicle Car Charging Stations Ev Charger Pile
Advantages:
1. Meet the charging requirements of all models of electric vehicles with different powers and dynamically
match the charging power required by the electric vehicles connected to any terminal.
2. Equip intelligent charging module, which has the advantages of high power, outstanding efficiency, low
harmonics, and high intelligence.
3. Dynamically allocate the charging power according to the charging demand from the BMS of the charging
vehicle to ensure charging safety.
4. Standard 4G communication module; charging operation swipe card / scan code; payment method: RFID
card / WeChat/Alipay.
5. Have two chargers in standard configuration, but optionally have single charger.
Technical Parameters:
| Product Type | 80KW All in one DC Charger |
| Product Model | RSDC1000-80KW |
| Dimension (H*W*D)(mm) | 1731*700*500 |
| Display Mode | 7" Color Touch Screen |
| AC Input Voltage Range (V) | 260-470VAC, 3P+N+PE (Wye connection) |
| AC Input Frequency (Hz) | 50 /60 Hz |
| Power Factor | ≥0.99 |
| Current Harmonics (THDI) | ≤5% |
| Efficiency | ≥96% (full load) |
| DC Output Voltage Range (V) | 200-1000Vdc |
| Output Voltage Range under Constant Power (V) | 300-1000Vdc |
| DC Output Current (A) | 160A (single gun) |
| Output Power (KW) | 80KW |
| Length of Charging Gun (m) | 5 |
| Noise (dB) | <=65 |
| Charging Operation | Swiping card/scanning code |
| Running Indication | Power supply, charging, fault |
| Heat Dissipation Control | Air Cooling |
| BMS Auxiliary Power Supply (V) | 12/24 |
| Power Distribution | Equipartition/Intelligent Distribution/Switching |
| Altitude (m) | ≤2000 |
| Working Temperature (ºC) | -20~50 |
| Storage Temperature (ºC) | -40~70 |
| Average Relative Humidity | 5%~95% |
| Protective Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc. |
| Charging Selection | RFID card, WeChat Official Account, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |
| Product Introduction | 1. Friendly visual interface, multiple information displays, prompt information, IC card information etc.; 2. Electric-energy acquisition system and charge accounting system provides the records of earning and spending. IC card and WeChat can be used for payment; When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light; 3. When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light; 4. In case of over-voltage, under-voltage, short-circuit, electric leakage and connection fault, the machine will stop charging and alarm through indicator light; 5. Industrial design, superior temperature adaptability, it has the long service life with protection grader of IP54; 6. The whole industrial chain of production mode for charging pile can sure the reliability of hardware. |
