5.12kWh 100Ah Household Solar Battery System , Inverter Battery Wall Mount 6000 Cycles
Price:
negotiation
MOQ:
10
Delivery Time:
20-40 DAYS
Brand:
RUISU
Product Description

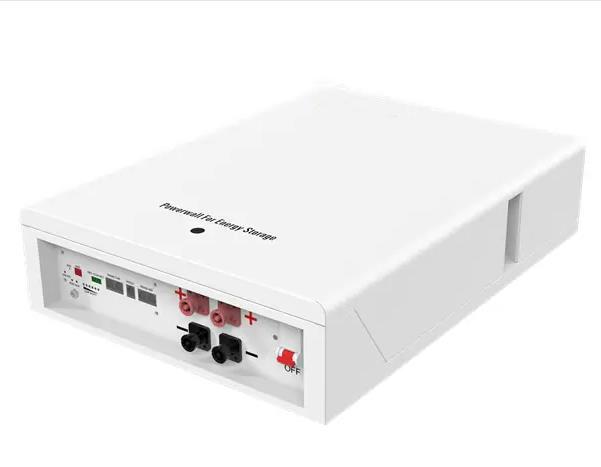

Power Wall Inverter With Energy Storage Battery RS-EOS
| Product model | RS-EOS48-5.0A-E0 | RS-EOS48-10.0A-E0 |
| Rated voltage | 51.2V | 51.2V |
| Rated capacity | 100Ah | 200Ah |
| Rated energy | 5.12kWh | 10.24kWh |
| Weight | 52kg | 90kg |
| Dimentions(L*W*H) | 620*450*140mm | 830*515*140mm |
| Battery type | LFP | |
| Life time(25℃) | 20 Years | |
| Life cycles(80% DOD,25℃) | 6000 Cycles | |
| Max.charging voltage | 57.6V | |
| Over discharge voltage | 44.8V | |
| Constant charging current | 100A | |
| Constant discharging current | 100A | |
| Peak charging current | 110A(3S) | |
| Peak discharging current | 110A(3S) | |
| Max.Number of parallel | 4 | |
| Communication interfaces | CAN/RS232/RS485 | |
| Lithium Battery Standard | UN38.3,MSDS,EN55032,EN55024, EN61000-3-2,EN61000-3-3 |
|
| Storage time / temperature | 6 months @25℃;3 months @35℃;1 months @45℃; | |
| Charging temperature range | 0～45℃ | |
| Discharging temperature range | -10～45℃ | |
| Cooling method | Natural cooling | |
| Enclosure protection rating | IP54 | |
| Operation Environment | Indoor | |
1,Long life with more than 6000 cycles with 80% DOD.
2,Small size, stylish design, easy to install.
3,Each battery with independent BMS system manages power output smartly and effectively.
4,Max. 4 units batteries in parallel at the same time and can provide a Max. 20kwh for your using.
5,Compatible with most of the available hybrid inverters.
