AC To DC EV Charger Module With 20KW 1000V Rectifier CE Approved
Price:
negotiation
MOQ:
1
Delivery Time:
20-40 DAYS
Brand:
RUISU
Product Description
Electric Vehicle AC to DC EV Charger Power Module CE Approved
20KW 1000V Rectifier
| Product Model | RSDC750 60GW-SW |
| High temperature full load | Super-high Working Temperature 60ºC under Full Load |
| Wide Constant Power | 20KW Voltage Interval 200-750v |
| AC Input Voltage Range (V) | 280VAC - 485 VAC Three-phase Four-wire System (3W+PE) |
| Frequency Range (Hz) | 45~66Hz |
| Max. Input Current (A) | 40 |
| Current Harmonics (THDI) | ≤5% |
| Efficiency | ≥96% |
| Power Factor | ≥0.99 |
| Output Voltage Range (V) | 200-750Vdc |
| Output Voltage Range under Constant Power (V) | 330-750Vdc |
| Rated Output Power (KW) | 20 |
| Max. Output Current (A) | 66.7A |
| Current Harmonic (THDI) | ≤5% |
| Output Protection | It's capable of returning prevention function, DC output over-voltage, output over-load protection function and warning and prompting function |
| Heat Dissipation | Fan forced refrigeration, designed with front and rear air duct |
| MTBF | ≥500000h |
| Power Density | 40W/in³ |

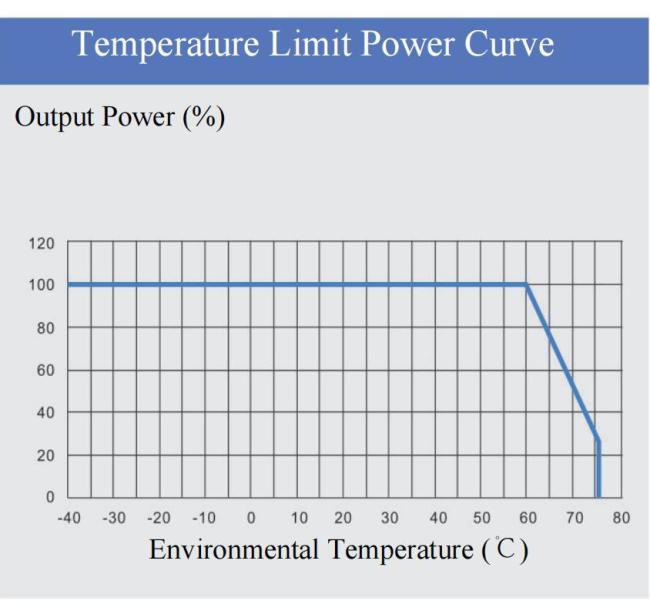

| Working Temperature (ºC) | -40~+75 (More than 55ºC deloading) |
