X348 X458 X678 Overhead Conveyor Chain Trolley Powder Coating Line
Powder Coating Line Overhead Conveyor Chain Trolley X348 X458 X678
Introduction
This model has a good space conveyor, wide scope, the work piece can continuous operation at high temperature bake, harmful gas area, spray booth.
The machine has low power consumption, low maintenance costs, durability, low noise, easy to operate.
Our service
We have professional more than 20 years experienced engineers to serve for you, provide your drawing or design, then we will provide the best suggestions, send inquiry for more details!
We also have other powder coating line equipments for your choice, such as: 5 ton overhead conveyor chain system(UH-5075-S, UH-5075-HA), ground line, manual line, industrial oven heating equipments etc.
Specification
|
Chain |
X348 |
X458 |
X678 |
|
Suspension Spacing (mm) |
T=76.2 | T=100 | T=160 |
|
Chain's catastrophic pull force
|
110KN | 220KN | 400KN |
|
Carriage Limit load |
300KG | 500KG | 800KG |
|
Carriage Allowable load
|
150KG | 250KG | 500KG |

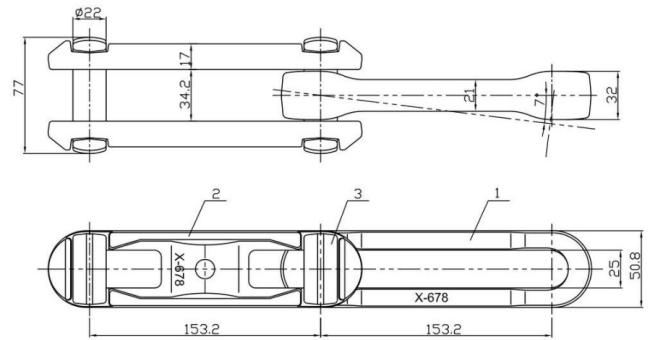

Drawing of X678 chain

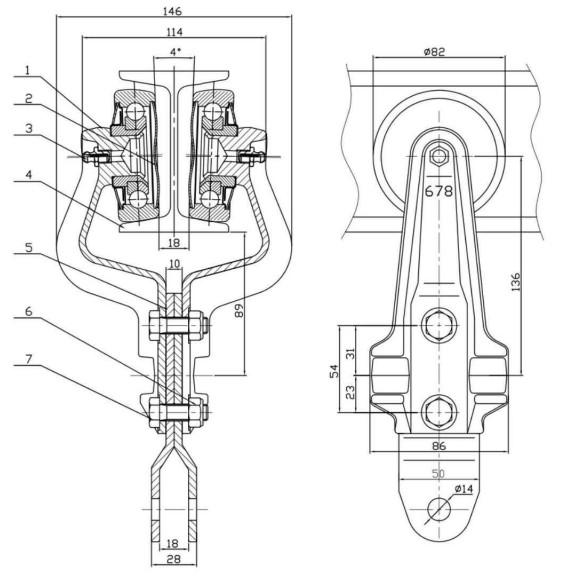

Drawing of X678 trolley
Other related parts
Driver unit(3KW, 4KW, 5.5KW etc)
Horizontal curved track
Tension device
What's your advantages?
1.Low noise
2.Less power consumption
3.Stable operate performance
4.User-friendly and safe use
5.Excellent extensity
6.Make full use of space
7.Large angle bending space
8.High mechanization & automatization
9.Close -up continual conveying equipment
10.Work perfectly together with the ground facilities
11.Make any turns on both horizontal plane and vertical planes

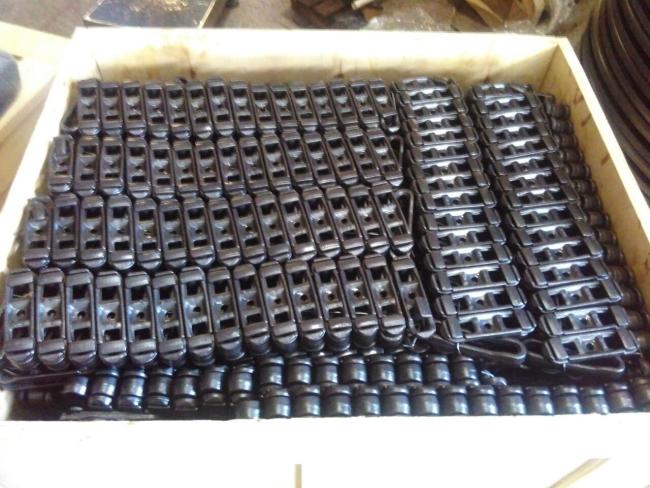

Package
