Purple Horn220 Infrared Mini Gas Burner BBQ Grill Ceramic Burner 220*170*60mm
Infrared Gas Burner Mini Gas Burner Ceramic Of BBQ Grill burner Parts
Product Introdution
|
Model |
Dimension | N.W. | Gas Type | Heat Output | Gas consumption | Power |
|
|
mm | kg | Kcal/h | NG LPG | KW | |
|
Purple Horn220 |
220*170*60mm | 0.9 | NG LPG | 2520 | 0.31 0.22 | 2.94 |
There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, Commercial alumetize covers Gas bbq Burner air transfer to object. Heat loss is big. But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, HD220 Commercial smokeless Gas bbq mini burner can save 10~20% gas energy and cost.

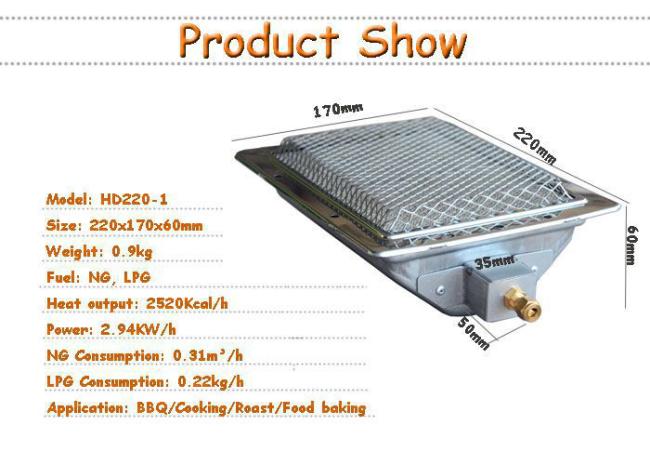

product specification
Our Advantage
* Energy saving: conversion rate≥90%
* Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
* Whole combustion: 95% of energy released in the form of infraredray; heating the objects directly
* Long useful time:≥11000hr
* Easily installed
Application

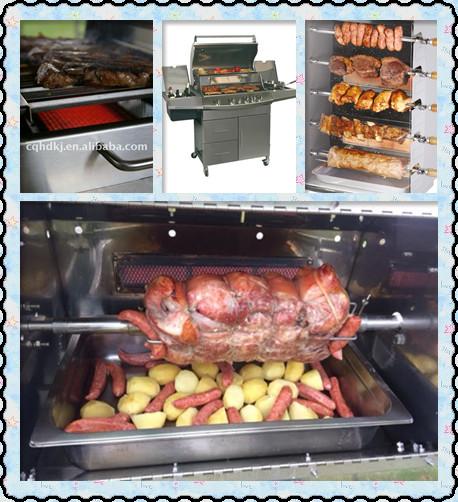

It is widely used in high-grade combined-type oven, Barbeque, shawarma grill, kebab grill, chicken machine and in snack car/teppanyaki/duck furnace.
Our Company
Hefei Purple Horn Technology Co.,LTD is the first one and only one company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 20% energy than non-catalytic infrared heater. Now we are specialized in Gas Burner, Infrared Burner, Gas Heater, BBQ Burner, Bakary Oven Burner, Industrial Burner..
FAQ
Q: What is working pressure of HD220 bbq Burner ?
A: 2000pa(NG)/2800pa(LPG)~~5000pa
Q: Gas bbq mini Burner surface Temperature Range ?
A: 35℃-500℃.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.
