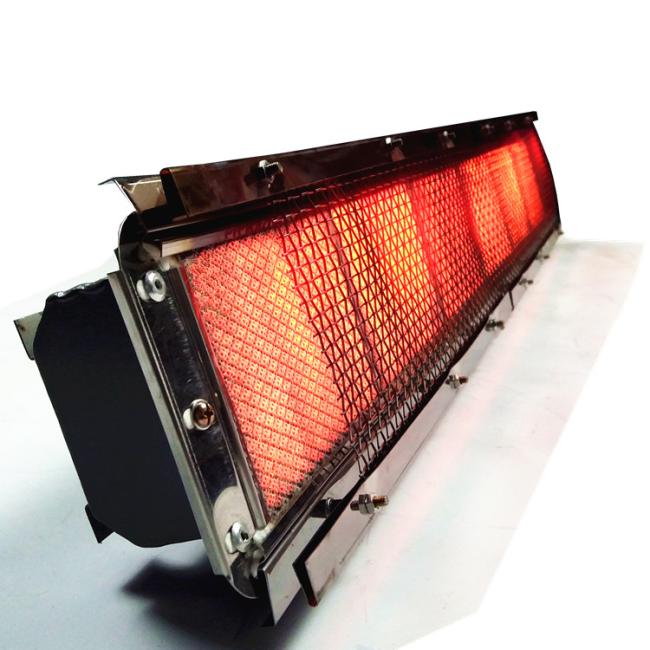

NG LPG Catalytic Industrial Oven Gas Burner Infrared Heating Elements HD242
Product Name: Heating Elements Catalytic Gas Burner Infrared For Industrial Oven HD242
We are top supplier of manufacturing infrared catalytic gas burner in China, we bulit in year 2005, and we have a lots of customers from all over of world.
The infrared gas burner is good for industrial heating, such as powder coating oven drying,
Details of Heating Elements Catalytic Gas Burner Infrared For Industrial Oven HD242
| Item | Infrared gas burner HD242 |
| Spare parts | Ignition pin, pulse igniter, solenoid valve |
| Gas type | LPG, natural gas |
| Heat transfer rate | >95% |
| High efficiency | Start work in 8 seconds |
| Use lifetime | >11000hrs, with right use, can use 3~7 years. |
| Technology | Rare-earth catalyst, save gas 20% |
| Smokeless & Flameless | CO,80ppm, NOx<10ppm, CHx<50ppm |
| Material | Galvanized steel body, cast iron air damper, honeycomb ceramic plates with catalyst, brass nozzle |
| Usage |
Industrial surface treatment; Food baking; Latex/rubber glove drying; fiber/texitle drying; asphalt road drying. |
Advantages of Heating Elements Catalytic Gas Burner Infrared For Industrial Oven
· Energy saving: conversion rate≥90% ,save above 20% energy than non-catalytic burner
· Environmental friendly: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
· Whole combustion: 95% of energy released in the form of infrared ray; heating the objects directly
· Long useful time:≥11000hr
· Easily installed
The technical parameters
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
| Light-off temperature | ≤350 |
| complete combustion temperature | ≤380 |
|
Heat source temperature
|
around 850 |
| Baking temperature range | 30---550 |
| Wavelength range | 1.9m--15m |
|
Furnance pressure natural |
gas 150mmAq;liquefied petroleum gas 280mmAq
|
| Working pressure | NG:2000~5000pa;LPG:2800~5000pa |
Comparison table for all kinds of energy consumption
|
Furnace type
Parameters |
Electronic cooker
|
Oil furnace |
Coal-fired furnace
|
Infrared catalytic heaters |
|
Energy requirement
|
10,000Kcal | 10,000Kcal | 10,000Kcal | 10,000Kcal |
| Temperature | 180 | 180 | 180 | 180 |
|
Energy consumption
|
Electricity(15 kW/h)
|
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg)
|
LPG(0.9Kg) |
|
Heating time
|
20 minutes
|
40 minutes | 90 minutes | 5-8 minutes |
Application for Heating Elements Catalytic Gas Burner Infrared For Industrial Oven
Infrared catalytic gas burner is good choice industrial drying, baking or curing oven, especially in tunnel&converyor oven......It martched with auto-igntion,safe controller and keep stable temperature.
A. Industrial surface treatment: liquefied/wet drying oven, curing spray painting oven, powder coating oven, preheating treatment equipment.
B. Food baking: snack puffed food such as biscuit, bread, cookies, egg roll, rice cake; dehydration of fruit, vegetable, spice; Roasting for fish, duck, chicken and other meat.
C. Other industrial heating: latex/rubber glove drying, paper drying, fiber/texitle drying, asphalt paving road drying
50pcs, less is also OK as trial order.
