Infrared Powder Coating Oven Gas Burner Ceramic LPG Catalytic HD242
Product Name: Infrared Powder Coating Oven Gas Burner Ceramic Catalytic Lpg Oven Burner HD242
We are top supplier of manufacturing infrared catalytic gas burner in China, we bulit in year 2005, and we have a lots of customers from all over of world, and get good comments from customers.
The infrared gas burner is good for industrial heating, such as powder coating oven drying, food baking oven, latex glove drying...

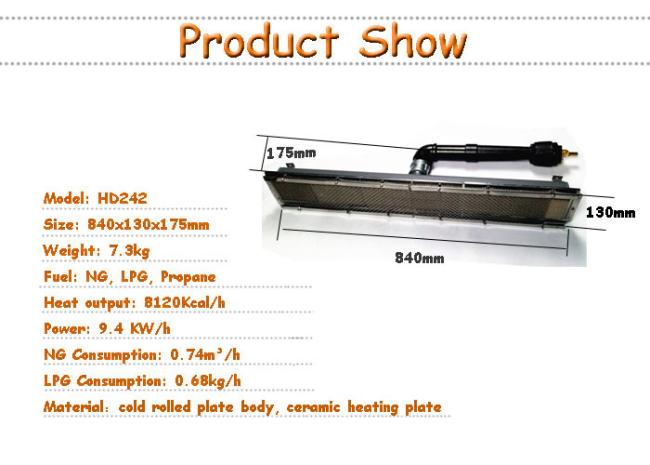

Details of Infrared Powder Coating Oven Gas Burner Ceramic Catalytic Lpg Oven Burner HD242
| Item | Infrared gas burner HD242 |
| Spare parts | Ignition pin, pulse igniter, solenoid valve |
| Gas type | LPG, natural gas |
| Heat transfer rate | >95% |
| High efficiency | Start work in 8 seconds |
| Use lifetime | >11000hrs, with right use, can use 3~7 years, even longer. |
| Technology | Rare-earth catalyst, save gas above 20% |
| Smokeless & Flameless | CO,80ppm, NOx<10ppm, CHx<50ppm |
| Material | Galvanized steel body, cast iron air damper, honeycomb ceramic plates with catalyst, brass nozzle |
| Usage |
Industrial surface treatment, powder coating line, painting line. Food baking; Latex/rubber glove drying; fiber/texitle drying; asphalt road drying. |
More Models of Infrared Powder Coating Oven Gas Burner Ceramic Catalytic Lpg Oven Burner
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD162 | 570*130*175 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 | 11.7 | 9.4 | 8120 | 0.75 | 0.71 | |
| HD262 | 930*130*175 | 13 | 10.9 | 9360 | 0.8 | 0.82 | |
Advantages of Infrared Powder Coating Oven Gas Burner Ceramic Catalytic Lpg Oven Burner
· Energy saving: conversion rate≥95% ,save above 20% gas than non-catalytic burner
· Environmental friendly: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
· Fully combustion: 95% of energy released in the form of infrared ray;
· Long useful time:≥11000hr
· Easily installed
The technical parameters
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
| Light-off temperature | ≤350 |
| complete combustion temperature | ≤380 |
|
Heat source temperature
|
around 850 |
| Baking temperature range | 30---550 |
| Wavelength range | 1.9m--15m |
|
Furnance pressure natural |
gas 150mmAq;liquefied petroleum gas 280mmAq
|
| Working pressure | NG:2000~5000pa;LPG:2800~5000pa |
Application for Infrared Powder Coating Oven Gas Burner Ceramic Catalytic Lpg Oven Burner
Infrared catalytic gas burner is good choice industrial drying,baking or curing oven,especially in tunnel&converyor oven......It matched with auto-igntion, safe controller and keep stable temperature.
A. Industrial surface treatment: liquefied/wet drying oven, curing spray painting oven, powder coating oven, preheating treatment equipment.
B. Food baking: snack puffed food such as biscuit, bread, cookies, egg roll, rice cake; dehydration of fruit, vegetable, spice; Roasting for fish, duck, chicken and other meat.
C. Other industrial heating: latex/rubber glove drying, paper drying, fiber/texitle drying, asphalt paving road drying
