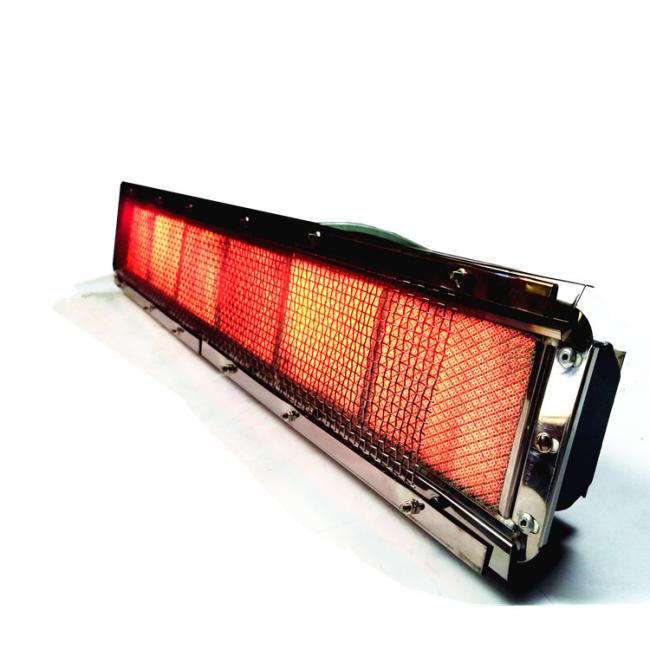

LPG NG Powder Coating Oven Gas Burner Heater IR Radiant Infrared Heating
Powder coating oven Gas burner heater direct heating IR radiant infrared heating
usually, there are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn.
Most Equipment is mainly by convection to heat air first and then, it is air second heating way. the heated air transfer to object. Heat loss is big. But, differently, Infrared catalytic burner heat object directly by radiation and transfer rate will be much higher, usually the heat converstion is high to 95%.
Powder coating oven Gas burner heater direct heating IR radiant infrared heating Catalogue
| Model | Dimension | N.W | Main material | Heat output | Gas consumption | ||
| KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||||
| FY41 | 280*80*70 (348*84*90) | 3.1 | cast iron | 2.1 | 1800 | 0.165 | 0.156 |
| HD61 | 423*80*94 | 3.8 | cast iron | 2.4 | 2030 | 0.18 | 0.17 |
| HD81 | 555*80*115 | 5.8 | cast iron | 3.1 | 2700 | 0.24 | 0.22 |
| HD82 | 219*164*108 | 4.8 | cast iron | 3.1 | 2700 | 0.24 | 0.22 |
| HD101 | 690*80*115 | 6.9 | cast iron | 3.9 | 3380 | 0.3 | 0.28 |
| HD162 | 570*130*175 | 6 | Galvanized steel | 6.3 | 5400 | 0.49 | 0.45 |
| HD242 | 840*130*175 | 7 | Galvanized steel | 9.4 | 8120 | 0.75 | 0.68 |
| HD262 | 930*130*175 | 8 | Galvanized steel | 10.9 | 9360 | 0.8 | 0.64 |
Industrial Powder Coating Oven Gas Burner Infrared Ceramic Energy Saving advantage
1. 20% GAS saving than non-catalyst infrared powder coating gas burner; Conversion rate: above 95%.
2. No flame catalytic combustion. it issafe.
3. heat mainly infrared radiation. It save gas.
4. guarantee the gas burning fire and burn holes never carbon.
5. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm good
6. Whole combustion: 95% of energy released in the form of infrared ray ;heating the objects directly
7. Long life:≥11000hr long use life
9. Easily installed
10. Flameless & smokeless

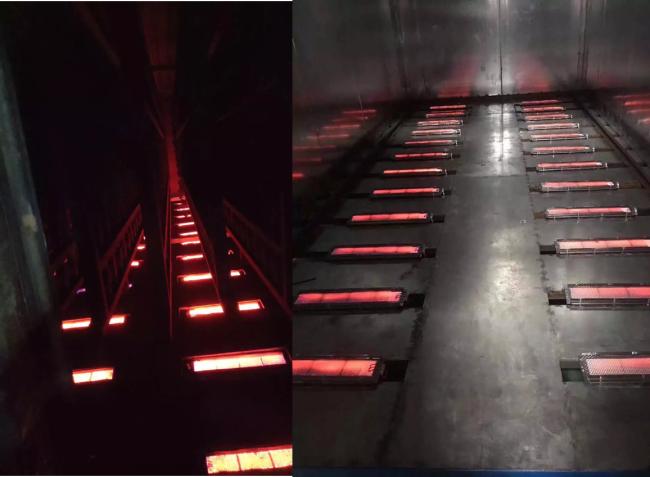

Powder coating oven Gas burner heater direct heating IR radiant infrared heating Application
Our infrared ceramic burner be widely use in pianting industry (Paint heating, powder coating,preheating, pwder curing ect) , food industry (egg roll, cake baking, coffee , grain ,nuts heating roasting, tea leavies etc)
