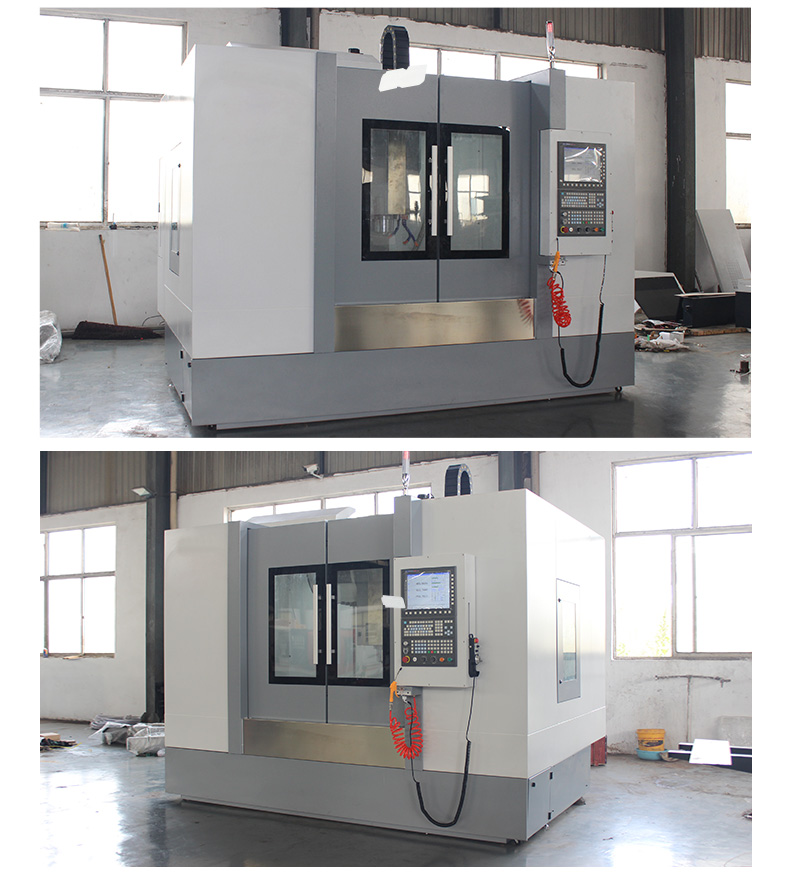

380V VMC1160 Vertical Milling Machine Three Axis Milling 11kw

Price Negotiable

Price: $23,000.00 - $38,000.00/sets

MOQ: Negotiable

Delivery Time: Negotiable

Brand: TENGDONG

Product Description

Specification

Specifications	unit	VMC1160
Table travel X/Y/Z	mm	1100x600x600
Distance between spindle and table surface	mm	100-700
Spindle center to column surface	mm	650
Rapid feed speed X	m/min	24
Rapid feed speed Y	m/min	24
Rapid feed speed Z	m/min	24
Cutting feed rate	mm/min	1-5000
Table size	mm	1200x600
Max. table load	kg	700
T slot(NWD)	MM	5-18-110

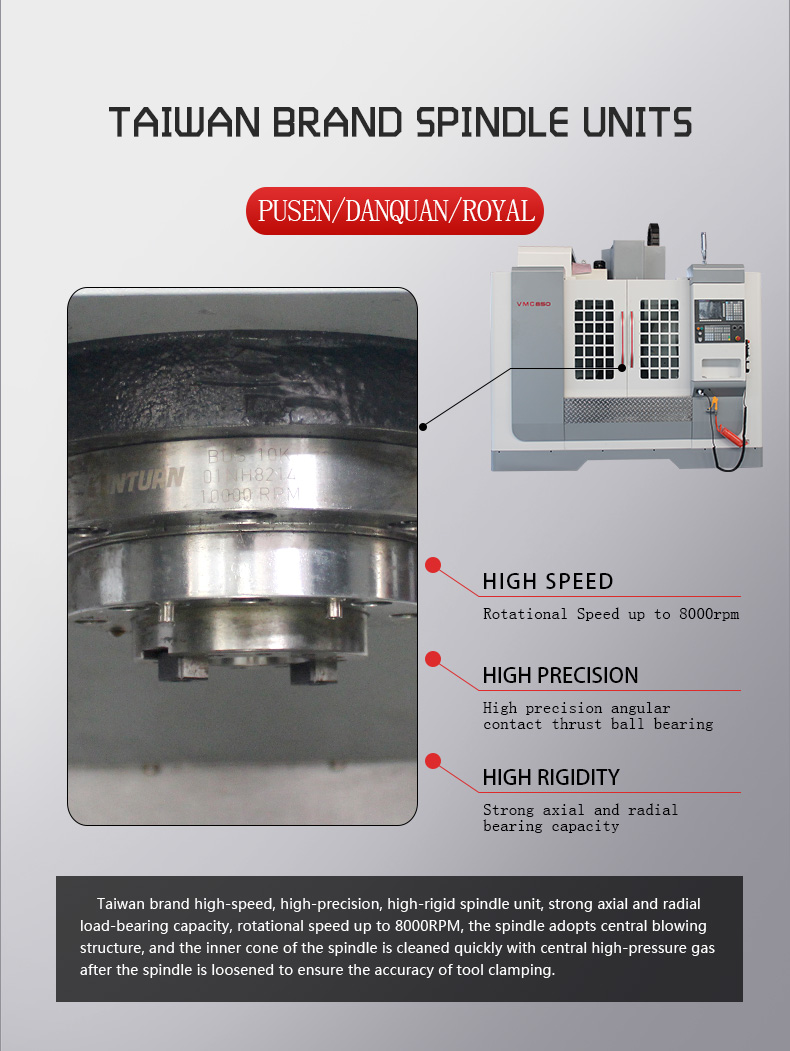

Spindle speed range	rpm	8000
Spindle taper		BT40
Spindle motor power	kw	11

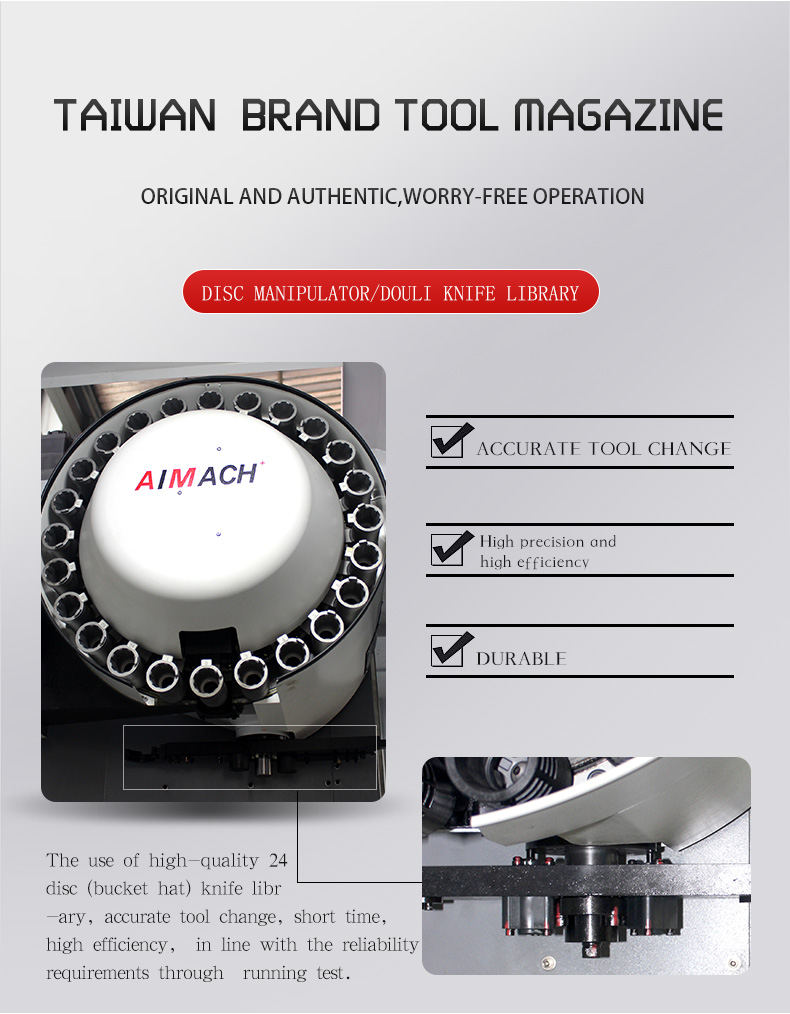

Magazine capacity	T	24
Magazine type		Disc type
Max. tool diameter	mm	80/150
Max. tool length	mm	300
Max. tool weight	kg	6/7
Positioning accuracy	mm	±0.005/300
Repeatability	mm	±0.003
Weight	kg	7500
Overall size	mm	360024002700

00:00

01:07

Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool

equipment consisting mainly of modern production group production enterprises.

Company under the three production bases, an import and export foreign trade companies
