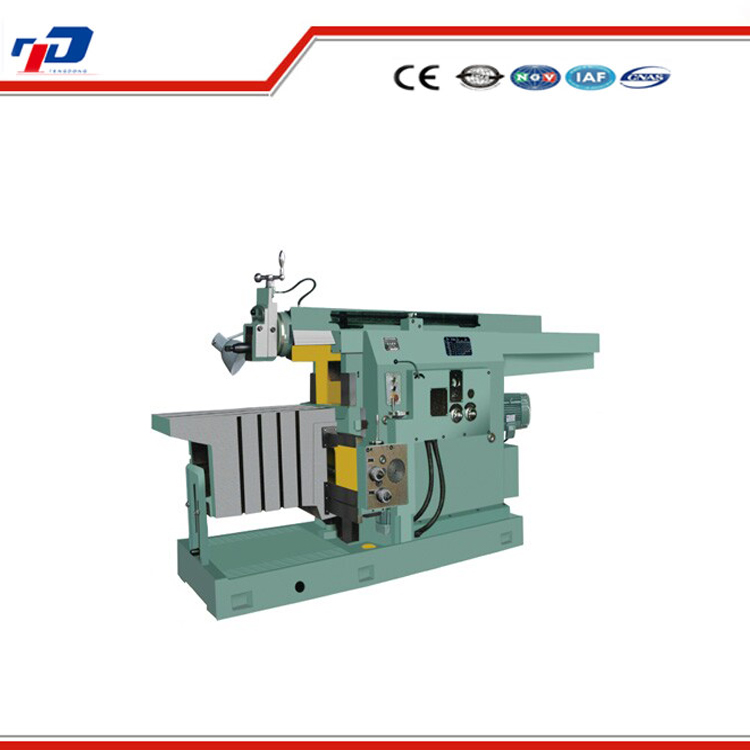

BC6063 CNC Metal Shaping Machine Sustainable For Building Material Shops

Price Negotiable

Price: $8,500.00/sets 1-1 sets

MOQ: Negotiable

Delivery Time: Negotiable

Brand: TENGDONG

Product Description

Specification

Specifications	Unit	BC6063	BC60100
Planing length	mm	630	1000
Ram bottom surface of the table the max. distance	mm	385	400
Max. horizontal travel distance of work table	mm	630	800
Max. table vertically movable distance	mm	360	380
Upper working surface of table (L*W)	mm	630*400	1000*500
Turret travel	mm	120	160
Ram reciprocating times per minute		14,20,28,40,56,80	15,20,29,42,58,83
Turret swing angle	°	±60°	±60°
Table mm motor feed range	mm	0.2-2.5(horizontal) 0.08-1.0(vertical)	0.3-3 (horizontal) 0.15-0.5(vertical)
Working table size mm central T groove	mm	18	18
Main motor power	kw	3	7.5
Size (LWH)	mm	234212251480	364017501780
N.W./G.W.	kg	1750/1870	4900/5100

Product main features:

Optimize the principle of design, the machine is beautiful, easy to operate.

The vertical and horizontal guide rail is used for rectangular guide and the stability is better.

The use of advanced ultra - frequency quenching process, so that the machine's life longer.

It is suitable for cutting all kinds of small parts of the plane, T type groove and forming surface, can be used for single or mass production.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

00:00

01:07

Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool

equipment consisting mainly of modern production group production enterprises.

Company under the three production bases, an import and export foreign trade companies

FAQ

Q1.What machines can be available in your factory?

A:We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .

Q2.What is your minimum order quantity and warranty?

A:MOQ is one set, and warranty is one year.

Q3.How soon can I receive the goods?

A:Most of our products are in stock, and we will arrange shipment around a week after payment is completed.

Q4.Can I trust you?

A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.

Q5.How' s your after-sale service?

A:Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.

Q6.What is the package? Is it suitable for shipment?

A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.

Q7.Are you manufacturer?

A: Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
