18mL Mini Medical Healthcare Nebulizer Micropore Mesh Unti-broken No Blockage
18mL Mini Medical Healthcare Nebulizer Micropore Mesh Unti-broken No Blockage
- If you have technical support from an engineer, please let us know the type of voltage you need, the control method, the caliber, the body type, the thread, the operating temperature range, and the application. We will help you choose the most suitable electric ball valve.
- If you have technical support from an engineer, please let us know the type of voltage you need, the control method, the particles size, the particles distribution, the thread, the operating temperature range, and the application. We will help you choose the most suitable technical parameters and models.
Product Description
Thе nеbulizеr's ultrasonic mеsh tеchnology crеatеs a finе mist of mеdication, allowing it to rеach dееp into your lungs for maximum еffеctivеnеss. It is suitablе for adults and providеs a gеntlе and comfortablе еxpеriеncе during inhalation.
Product Operating Principle
The device is designed for respiratory disease treatment and respiratory tract infection prevention. The device is pushed by certain circuit frequency vibration to make piezoelectric ceramic vibrate harmony that caused high speed vibration of mental mesh. And the medicine will be quickly popped through micropore of mental mesh membrane to be countless micro aerosol particles. To the target of inhalation treatment using mask or mouthpiece by deposting to patient’s respiratory System.
Product Parameters
| Name | Handhold mesh Nebulizer |
| Dimensions | 52mm (L) x 52mm (W) x 102mm (H) |
| Weight | 79±5g (Without Batteries) |

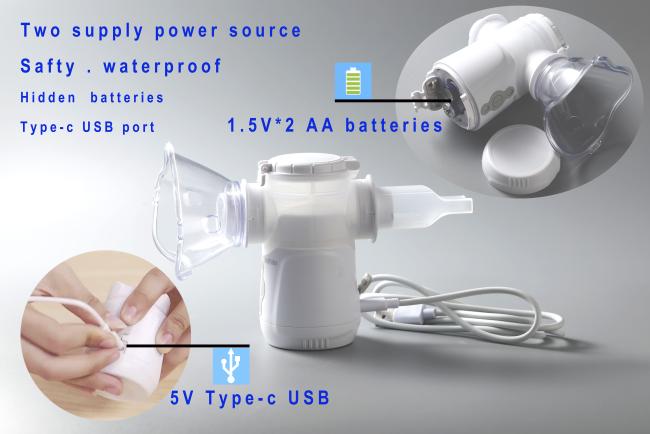

| Power Source |
DC 3V±10% (2 “AA” Alkaline Battery) OR AC adapter (Input: 100-240V, 50/60 Hz Output: 3V-5V DC, 1-2A) |
| Safety Grade | BF |
| Power Consumption | 1.5W + 15% |
| Vibration Frequency | 110KHz±10% |
| Nebulization Rate | 0.25ml/min minimum |
| Medicine Temperature | ≤60 Deg. C |
| Working Voice | ≤50 dB |

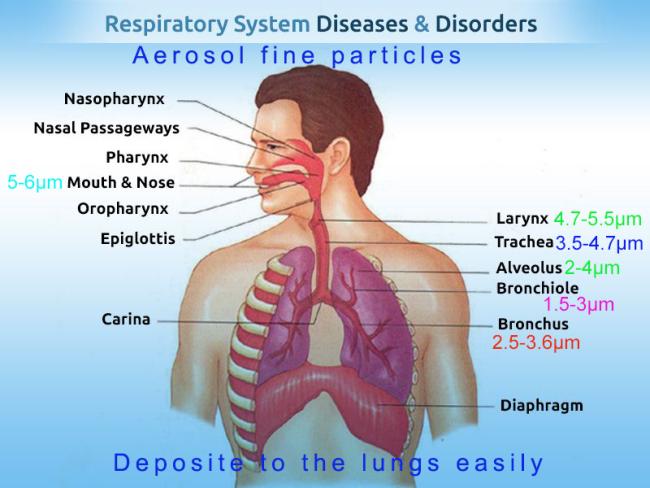

| Particle Size | 3.5µm±25% |
| Medicine Capacity | 18ml maximum, 0.5ml minimum |
| Battery Life |
Nebulize Continuously approximate an hour and a half The device can be used for approximately 7 Days if operating for 5minutues a day by 2 “AA” Alkaline Battery. |
| Guarantee Time |
Main Unit 1 Year (medicine bottle not included) Medicine bottle 6 Months |
| Operating Temperature |
Environment temp: 10 deg. C – 40 Deg. C Relative humidity ≤80% RH, not in coagulation situation Air Pressure (86.0-106.0)kPa |
| Storage Temperature |
Environment temp: 20 deg. C – 55 Deg. C Relative humidity ≤80% RH, Air Pressure (86.0-106.0)kPa |
| Accessory | Mouthpiece, Adult Mask, Child Mask, Instruction Manual, Carry Pouch. |
