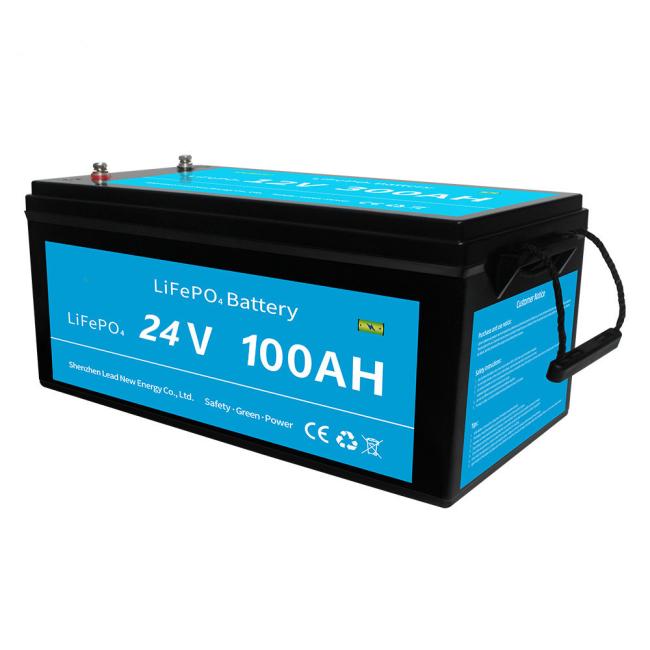

Lifepo4 BMS 2560Wh 24V 100Ah Lithium Battery For RV Camper
Lifepo4 Battery buit-in BMS 2560Wh 24V 100Ah Lithium Battery For RV Camper
Features:
1. Factory Price
2. >4000 Cycles at 80% depth of discharge to ensure long cycle life.
3. Rugged mechanical design with Modular design or laser spot welding to group.
4. Suitable for high-power power products.
5. Automatic system cell Charging balancing, Maintenance-free & No hydrogen generation or gassing.
6. OEM logo available.
| Specifications: | |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100 Ah (C6«25*C) |
| Energy | 2560Wh |
| Internal Resistance | «20mQ |
| Cycle Life | >2000 cycles @1C 100%DOD |
| Months Seif Discharge | <3% |
| Efficiency of Charge | 100% @0.5C |
| Efficiency of Discharge | 9&-99% @1C |
| Charge Voltage | 292±02V |
| Charge Mode | 02C to 292V, then 292V, charge current to 0.02C(CC/CV) |
| Charger Current | 50A |
| Max. Charge Current | 50A |
| Charge Cut-off Voltage | 312V102V |
| Continuous Current | 100A |
| Max. Pulse Current | 300A(<3s) |
| Discharge Cut-off Voltage | 192V |
| Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge lemperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity |
| Water Dust Resistance | Ip56 |
| Plastic Case | ABS |
| Dimensions | 522*240*224mm |
| Weight | 21Kg |
| Terminal | M8 |
FAQ:
Q: Do you have your own factory?
A: Yes, we are manufacturer,welcome you to visit our factory.
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Q: Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger quantity orders.
Q: Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: what is your warranty?
A: We offer 5 years warranty for all our battery pack.we ensure at least 5000 cycle life for the LiFePO4 battery pack
