70HP Front Loader Trailer Four Wheel Tractor With Agricultural Machinery Parts
Agricultural Farm Tractor 70HP 4wd 4x4 Four Wheel Front Loader Trailer With Agricultural Machinery Parts

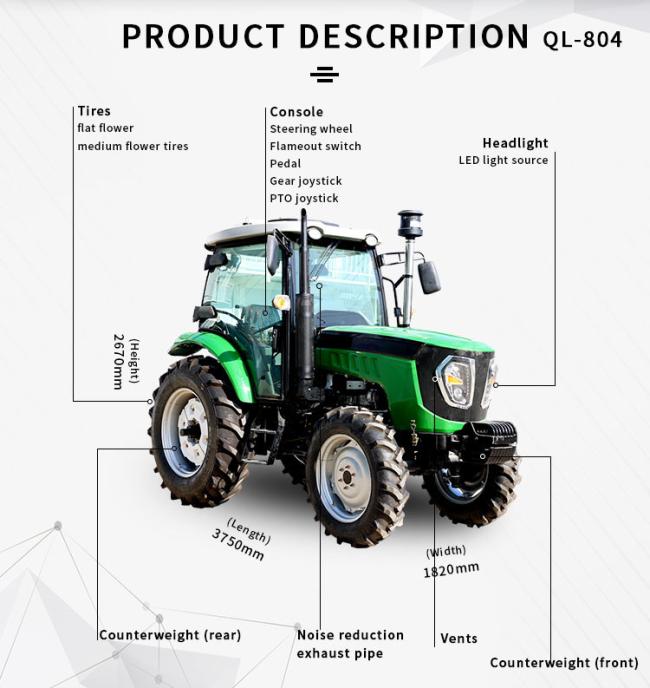

70HP tractor
TE series farm tractor
1. TE series tractor is designed for multiple light works, such as farming, transportation etc.
2. Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency
and fuel efficiency, low maintenance cost and good working performance.
3. Using central console and mature structure, the tractor is easy to control and maintain.
4. 8F+2R gearbox with easy operation and convenient maintenance;
5. Optional single/double action clutches for different needs and operation; Optional
Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
6. Hydraulic power steering( 4WD) makes it easy to control and reduce the labor strength of operator.
|
Product Parameter
|
|||
|
Model
|
704E
|
704B
|
|
|
Machine parameters
|
Type
|
4×4
|
4×4
|
|
Rated Traction( KN)
|
12
|
17
|
|
|
PTO Max Power (KW)
|
43.8
|
50
|
|
|
Dimensions(mm)
|
3560×1650×2450
|
3750×1820×2670
|
|
|
Wheelbase(mm)
|
1965
|
2050
|
|
|
Track(mm)
|
Front wheel(mm)
|
1150
|
1280
|
|
Rear wheel(mm)
|
1200-1360
|
1100-1390
|
|
|
Ground clearance(mm)
|
Minimum ground clearance(mm)
|
330
|
330
|
|
Minimum turning cricle radius
|
Use unilateral braking
|
2.85±0.20
|
3.8±0.30
|
|
Not unilateral braking
|
3.15±0.30
|
4.3±0.30
|
|
|
Minimum use quality
|
1880
|
2950
|
|
|
Gearbox
|
8F+8R Shuttle Shift
|
12F+12R Shuttle Shift
|
|
|
Steering System
|
Hydraulic steering gear
|
||
|
Drive Train
|
Clutch
|
Dual stage clutch
|
Double acting clutch
|
|
Working equipment
|
Maximum lifting force at 610mm(KN)
|
10.85
|
≥14.2
|
|
Suspension mechanism
|
Three-piont suspension type 1 or 2
|
Three-piont suspension type 1
|
|
|
PTO shaft
|
PTO Spedd(r/min)
|
540/760(option: 540/1000)
|
540/760(option: 540/1000)
|
|
Tire
|
Front wheel specifications
|
6.5-16/7.5-16/7.5-20
|
8.3-20/8.3-24/9.5-24
|
|
Rear wheel specifications
|
11.2-24/12.4-24/12.4-28
|
12.4-28/11-32/14.9-30
|
|
|
Engine
|
Type
|
Inline, 4 stroke, Water cooled
|
Inline, 4 stroke, Water cooled
|
|
Cylinder
|
4
|
4
|
|
|
Optional
|
Cabin
|
AC/Heater
|
|
|
Roll bar
|
|||
|
|
Canopy
|
|
|
|
Perfusion volume
|
Radiater(L)
|
15
|
12
|
|
Fuel tank(L)
|
50
|
64
|
|
|
Engine oil pan(L)
|
5
|
7
|
|
|
Driveline oil (L)
|
20
|
28
|
|
|
Lifter(L)
|
9.5
|
11
|
|
|
Hydraulic steering oil (L)
|
0.7
|
0.8
|
|
|
Steering system oil (L)
|
15
|
20
|
|
|
This parameter table is for reference only, everything is based on actual products
|
|||
