32G Industrial Embedded System 900-13701-0040-000
NVIDIA AI Kit Industrial Embedded System Jetson AGX Orin Developer Kit development Board 32G 900-13701-0040-000
NVIDIA Jetson AGX Orin Developer Kit Y-C8 AGX Orin module 32G 900-13701-0040-000
The Y-C8-DEV-Orin 32G is self-developer kit by PLINK-AI,and it based on NVIDIA Jetson AGX Orin module, Jetson AGX Orin Module SOM Up To 200 TOPS of AI performance 900-13701-0040-000 and it is for industrial such as autonomous, VR, drones, robotics and logistics. NVIDIA Jetson AGX Orin module (900-13701-0040-000) with the Ampere GPU architecture, next-generation deep learning and vision accelerators, high-speed IO, and fast memory bandwidth. and gives you more than 6X the performance of Jetson AGX Xavier in the same compact form-factor for robotics and other autonomous machine use cases.
Jetson AGX Orin 32G domestic developer kit

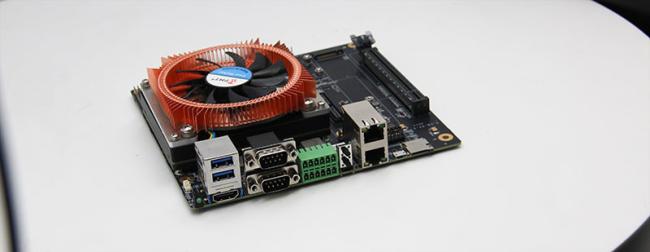

Y-C8 development Board + NVIDIA Jetson AGX Orin Module (32G) 900-13701-0040-000 + Cooling FAN
NVIDIA Jetson AGX Orin Module (32G) Technical Specifications
|
AI Perf |
200 TOPS |
|
GPU |
1,792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
|
Memory |
32GB 256-bit LPDDR5 |
|
Storage |
64GB eMMC 5.1 |
|
USB |
3x USB 3.2 Gen2 (10 Gbps) |
|
Camera |
Up to 6 cameras (16 via virtual channels) |
|
Display |
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
|
USB Micro-B |
1 x Type B (OTG) |
|
USB Type-A |
1 x USB 3.1 |
|
GPIO(3.3V) |
1 |
|
SPI(3.3V) |
1 |
|
I2C(3.3V) |
2 |
|
RS 232 |
2 |
|
Debug(UART) |
1 |
|
CAN (with on-board transceiver) |
2 |
|
Networking |
1 x 10/100/1000 Ethernet/RJ45 |
|
Power Supply |
DC +12V |
|
Temperature |
-25~+65°C |
|
Size |
188mm × 170mm × 43mm |
