SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder
Price:
NEGOTIABLE
MOQ:
1 SET
Delivery Time:
60 DAYS
Brand:
SNYNXN
Product Description
Machine Name:
Fluid Bed Granulator And Coator For Pharmaceutical Industry Fluid Bed Dryer Granulator
SUS304 Fluid Bed Granulator and Coater For Pharmaceutical Industry
Main Features
Through powder granulation, improve fluidity, reduce dust flying.
The solubility was improved by powder granulation.
Mixing- granulation -drying is completed in one machine.
Use anti static filter cloth to ensure the safety of the equipment.
Set up the pressure discharge hole, in case of explosion, personnel will not be injured.
There is no dead angle in the equipment, the loading and unloading is light and fast, and the washing is convenient, which
conforms to the GMP specification.
High degree of automation, equipped with program control, simulation screen display technology for users to choose.
The solubility was improved by powder granulation.
Mixing- granulation -drying is completed in one machine.
Use anti static filter cloth to ensure the safety of the equipment.
Set up the pressure discharge hole, in case of explosion, personnel will not be injured.
There is no dead angle in the equipment, the loading and unloading is light and fast, and the washing is convenient, which
conforms to the GMP specification.
High degree of automation, equipped with program control, simulation screen display technology for users to choose.

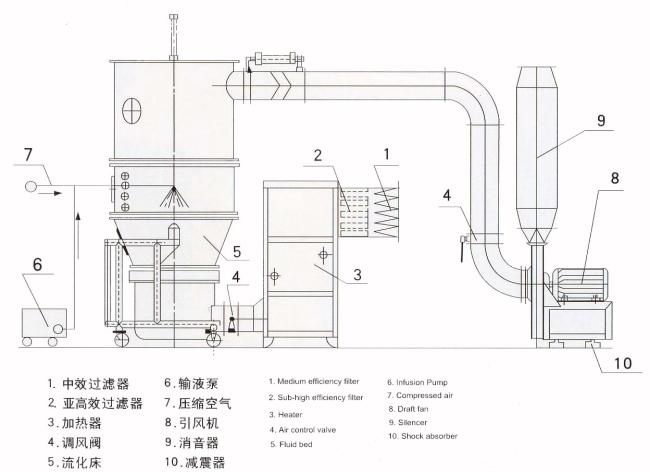

Working Principle
Powder material into the hopper container, due to the effect of hot air flow, the powder suspension shows a fluidized circulation flow and achieve uniform mixing,at the time, spray a mist binder to wet the powder in the container to make the powder condensed into loose small particles, when granulating, due to the high-efficiency drying of hot air flow, the water is continuously evaporated and the powder is solidified continuously, process repeated, forming ideal and uniform spherical particles with multiple micropores, the three processes of mixing, granulation and drying are completed in the container at one time.The water content and disintegration time of solid preparation were taken as the investigation indexes, and the results were tested by T test. Results: when the solid preparation was dried, the boiling drying method was significantly different from the traditional drying method.
Applications
Drug granulation and coating. Granulation: tablet granule, granule for granule, capsule granule. Coating: pellet, pill protective layer, color slow release, film, enteric coating. Food granulation and coating. Fried sugar, coffee, cocoa powder, cream powder juice, amino acid, seasoning, puffed food. Granulation of pesticides, pigments and dyes. Powder, granule, block material drying.
Technical Data
| Capacity (Kg /batch) | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | 800-1000 |
| Scope of application for liquid(g/cm3) | <1.3 |
By client
|
|||||||
| Material yield rate (%) | ≥99 | ||||||||
| Qualified rate of end products (%) | ≥85 | ||||||||
| Container volume (L) | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 | |
| Diameter r(mm) | 500 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| Power of fan (Kw) | 3 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| Power of supply liquid motor (Kw) | 0.37 | ||||||||
| Pressure of steam (Mpa) | 0.4-0.6 | ||||||||
| Consumption of steam (Kg/h) | 18 | 35 | 60 | 120 | 140 | 180 | 310 | 400 | |
| Pressure of compressed air (Mpa) | 0.4-0.6 | ||||||||
| Working temperature (℃) | Normal temperature -120℃ could adjust | ||||||||
| Overall dimension of machine (L×W×H) | refer to installation drawing or customer’s room | ||||||||
|
Material
|
Stainless Steel
|
|
Customized
|
Accept
|
|
Service
|
OEM and OEM
|
|
Package
|
Standard wooden packing for sea shipping
|
