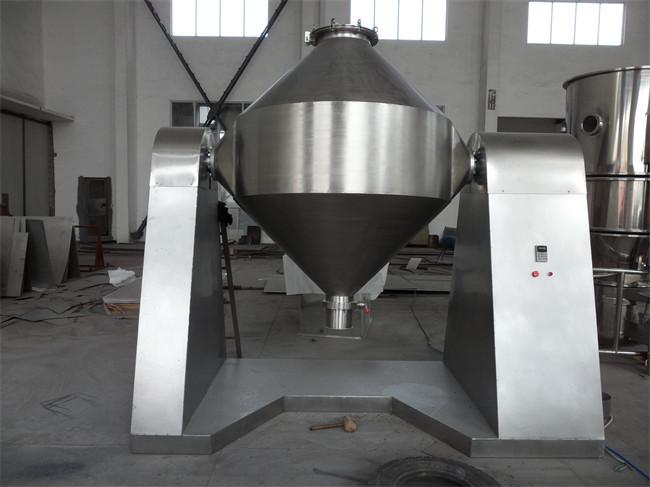

Food Flour Portable Double Cone Mixer Blender Mixing Machine For Cosmetic Powder

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: IN 60 DAYS
Brand: SNYNXN
Product Description
Product Description: Industrial Food Flour Mixers Double Cone Mixer



This machine is standard timing shutdown, speed adjustable 0-33R/M ,sorting purchase timed reverse mixing, can realize positive rotation after a few laps in a few laps so agreed to reverse the mixing time of shutdown, this function than the single direction of high mixing efficiency several times, the co pilot Laboratory of precision or mixed materials need efficient mixing.

The machine is suitable for mixing dry, powdery, granular materials and irregular materials in pharmaceutical, chemical and food products.



The mixing barrel of the machine has unique structure, uniform mixing, high efficiency and non accumulation. The utility model has the advantages of simple structure and easy operation. The outer surface and material contact parts are made of high quality stainless steel, with beautiful appearance, convenient maintenance and cleanness



The mixer inner walls are smooth without any dead corner. The tank is provided with unique four-direction mixing movement track. With mixing evenness of 99%, high mixing precision and high speed, ideal mixing effect is achieved.



Applications

It is suitable for mixing the powder and grain state materials in the pharmacy, chemical food, building material and other industries.



Features

Through the vacuum conveyor for the machine, send the powder or grain state materials into the double-taper container, or send the materials into the container manually.


As the container rotates continuously, the materials moves complexly in the container so as to get the uniform mixing.

Technical parameters


Model

Total volume (m3)

Productive capacity (kg/batch)

Mixing time (min)

Revolution of cylinder (rpm)

Power
(kw)

Overall dimension(mm)

Rotation height (mm)

Weight
(kg)
180 0.18 90 4-8 12 1.1 1400×800×1850 1850 280
300 0.3 150 6-10 12 1.1 1685×800×1850 1850 310
500 0.5 250 6-10 12 2.2 1910×800×1940 1950 550
1000 1.0 500 6-10 12 3 2765×1500×2370 2460 810
1500 1.5 750 6-10 10 4 2960×1500×2480 2540 980
2000 2.0 1000 6-10 7-10 5.5 3160×1900×3500 3590 1500
2500 2.5 1250 6-10 7-8 7.5 3386×1900×3560 3650 2150
3000 3.0 1500 6-10 7-8 7.5 4450×2200×3600 3700 2500
4000 4.0 2000 6-10 7-8 11 4750×2500×3680 3730 3200







industrial flour square cone mixer blender machine



Q:  Are you a factory or a trading company?
A: Guibao is a very famous pharmaceutical machinery factory in China. Welcome to visit SNYNXN factory!



Q: Where are you? How can i visit your factory?
A: Shengang Town, Jiangyin City, Jiangsu Province, China, You can take the high-speed rail to Wuxi or Shanghai Station, and then we'll pick you up.



Q: Payment terms accepted by us
A: T/T or 50%T/T 50%L/C
