500L TQ Series Chemical Pharmaceutical Machinery Multifunctional Extraction Tank
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 50 Days After Order
Brand:
SNYNXN
Product Description
Description of Chemical & Pharmaceutical Machinery High Quality Extraction Tank

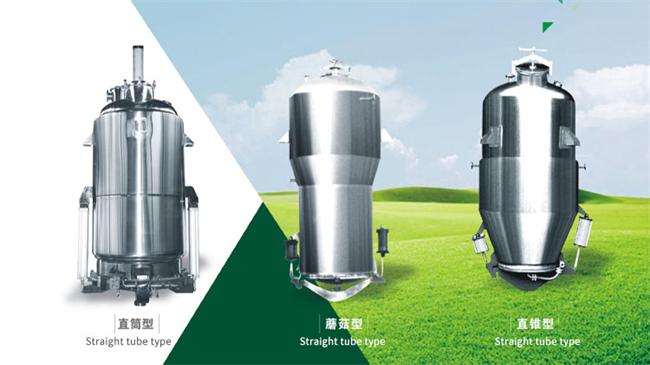

TQ Series Chemical & Pharmaceutical Machinery High Quality Extraction Tank Multifunctional Extraction Tank
Usage: This machine is widely using the solution to extract the medicine ingredient from the raw material like herbs root,stem, leave, flower, fruit, seed and animal bone, viscera etc. and this machine can meet the different extractor process, like the water based extractor process, solvent based extractor process, steam distill process etc. it can be used the pressurized extractor, Atmospheric pressure extractor, vacuum extractor for the different temperature and different working process condition.

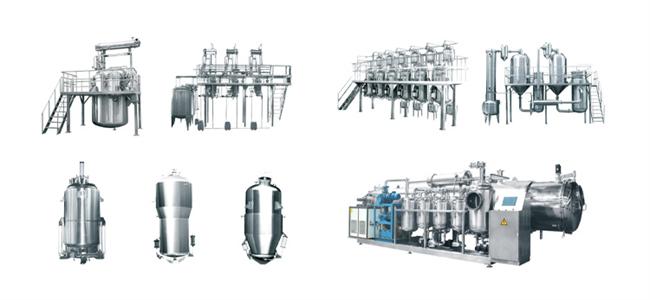

Structure: This machine including the following unit: extractor tank, condenser, sub-cooler, water / oil separater, filter, pump and pipeline.
Feature
1. Pneumatic lock discharge gate can keep the machine safety and non leakage for the electric power / compressor air turn off in sudden.
2. Special backsurge unit design can resolve inside extractor sediment problem and can keep inside tank temperature uniform.
3. Special side discharge unit design can resolve the discharge nozzl block problem and can be easy clean and unload.
4. Special foam destroyer unit design can resolve the foam block the condenser problem and easy to be clean.
5. Special oil / water separater unit design can be collect oil easily.
6. Multi-segment jacket can be easily control the inside temperature when the jacket heat.
Data
|
Model
|
TQ-1.0
|
TQ-2.0
|
TQ-3.0
|
TQ-6.0
|
TQ-8.0
|
TQ-10.0
|
|
Total capacity (L)
|
1200
|
2300
|
3300
|
6500
|
8600
|
110000
|
|
Jacket design pressure (Mpa)
|
0.33
|
|||||
|
Jacket design temperature (℃)
|
146
|
|||||
|
Compress air pressure (Mpa)
|
0.6-0.7
|
|||||
|
Manhole diameter (mm)
|
400
|
400
|
400
|
500
|
500
|
500
|
|
Condenser area (㎡)
|
3.0
|
5.0
|
6.5
|
9.5
|
12.5
|
15.0
|
|
Sub-cooler area (㎡)
|
0.5
|
1.0
|
1.2
|
2.0
|
2.5
|
3.0
|
|
Filter area (㎡)
|
0.2
|
0.2
|
0.25
|
0.3
|
0.4
|
0.5
|
|
Steam consumption (kg/h)
|
245
|
305
|
345
|
645
|
720
|
850
|
|
Total weight (kg)
|
1080
|
1620
|
2400
|
3025
|
4030
|
6500
|
SNYNXN was founded in 2007, We are a high-tech enterprise in Jiangsu province.
SNYNXN is a high-tech enterprise mainly engaged in the research, development, production and sales of Pharmaceutical Machines. The main products are Fluid Bed series, drying and granulating machine and Extraction Equipment etc.., which are mainly used in the fields of pharmaceutical, food, health care products and feed.
SNYNXN owns certificates of GMP, CE, SGS, ISO9001, AAA etc. With good quality and professional aftersales service, we enjoy high reputation among our customers over 120 countries and regions around the world.
SNYNXN owns certificates of GMP, CE, SGS, ISO9001, AAA etc. With good quality and professional aftersales service, we enjoy high reputation among our customers over 120 countries and regions around the world.
