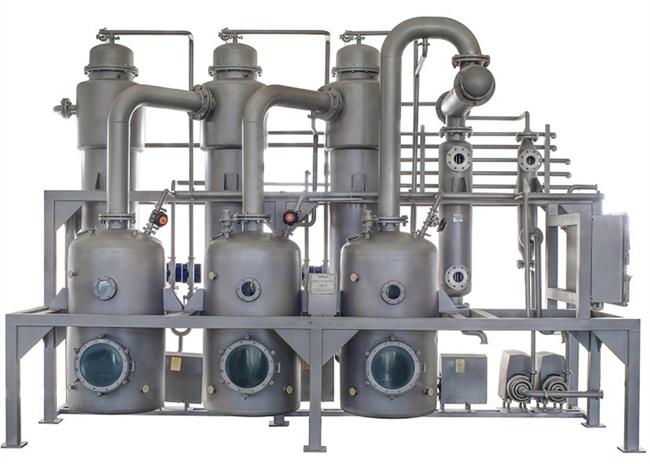

83t/H Triple Effect Evaporator Industrial Extraction Equipment For Food Pharmaceutical

This Falling film evaporator concentrator is applicable to concentration of traditional Chinese medicine, western medicine, glucose, starch, monosodium glutamate, dairy and chemical industry, etc. It is especially suitable for low temperature vacuum concentration of heat sensitive substances. It can carry out continuous sterilization and concentration. After careful calculation, precise design and improvements by professional designers of our company, it has more features and benefits than the original one. The concentrator is especially applicable to concentration of heat- sensitive substances like milk as the heat up time is short and evaporation temperature is low, which seldom affects the color, flavor or nutrient components of the products.

Structural features
♥ Multiple functions: Boiler can reclaim materials repetitively with the circulation of first effect, second effect and third effect. Materials can be fed into for concentration continuously or at intervals.
♥ All parts contacting materials, secondary steam and condensed water are made of high-quality stainless steel, which conforms to GMP standard requirements. The appearance is beautiful. The heater and evaporator are provided with heat preservation structure covered by stainless sheet with its surface mirror-polished or matte-treated.
♥ The heating chamber is of the floor stand type, so the device is beautiful and easy to install, operate and repair. •Water ring pump is used to pump vacuum. The pump is featured by high vacuum degree, low consumption of water and power supply, small space, sound working environment and low noise.
♥ The advance design can not only prevent back flow leading to repeat heating of material, but also avoid burnt material sticking to inner side of pipe.
♥ Advanced hot pressure pump is used. Its steam pressure (gauge pressure) is 0.8MPa, and the extraction coefficient is 0.98. Therefore, the steam consumption and noise are low.
♥ Advanced structure makes the vacuum degree of working system very stable.
♥ With CIP system, the device can be cleaned completely without disass- embly. And it is easy to operate and maintain.
♥ According to customer requirements, automatic control system of disch- arge concentration, sterilization temperature and level of balancing tank, as well as ice water refrigeration system can be configured.
♥ The concentrator has a special structure.The materials after concentration are thick and even. The materials can be concentrated in sealed status without any bubbles, so material loss and pollution are reduced greatly. The materials concentrated will not agglomerate, so it is easy to clean. You can open the top cover or bottom cover to clean. Therefore, one person is enough for cleaning.

3. Main Parameter
