220L Lab Scale Fluid Bed Granulator
Description of Fluidized Bed Dryer Machine For Making Dry Medicine Granule

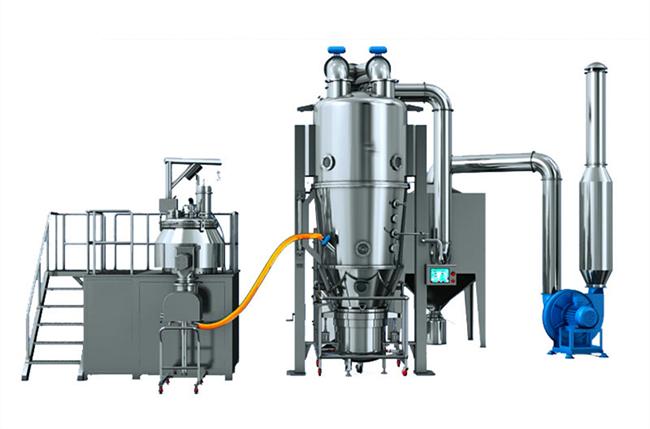

FL Series GMP Pharmacy Fluidized Bed Dryer Machine For Making Dry Medicine Granule

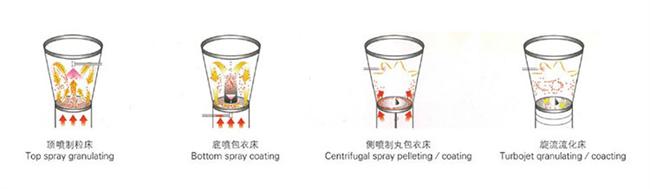

The powder granule in fluid bed appears in the state of fluidization.
It is preheated and mixed with clean and heated air.
At the same time the solution of adhesive is sprayed into the container.
It makes the particles become granulating that contains adhesive.
Being of unceasing dry through hot air, the moisture in the granulating is evaporated.
The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Main Features
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
Technical Parameters:
|
Model-FL
|
5
|
30
|
60
|
120
|
200
|
300
|
500
|
|
Capacity(Kg/Batch)
|
5
|
30
|
60
|
120
|
200
|
300
|
500
|
|
Material yield Rate(%)
|
>/=99%
|
||||||
|
Qualified Rate (%)
|
</=85%
|
||||||
|
Container Volume(L)
|
22
|
100
|
220
|
420
|
670
|
1000
|
1500
|
|
Diameter(mm)
|
500
|
700
|
1000
|
1200
|
1400
|
1600
|
1800
|
|
Power of Fan(Kw)
|
3
|
7.5
|
11
|
18.5
|
22
|
30
|
45
|
|
Liquid Feed Power(Kw)
|
0.37
|
||||||
|
Pressure of Steam(MPa)
|
0.4~0.6
|
||||||
|
Consumption Steam(Kg/h)
|
18
|
60
|
120
|
140
|
180
|
310
|
400
|
|
Compress Air Pressure( MPa)
|
0.4~0.6
|
||||||
|
Consumption of Air(m3/min)
|
0.3
|
0.9
|
0.9
|
0.9
|
1.1
|
1.1
|
1.5
|
|
Working Temperature C
|
Room temperature~120C adjustable
|
||||||
|
Noisy(dB)
|
Installed separated with fan </=75
|
||||||
OUR FACTORY:
![]()
![]()
Pre-service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
Sale service
1. Ensure product with high quality and pre-commissioning before delivery; provide each manufacturing step photo for customer checking on time.
2.Testing the machine and making video for customer’s checking.
3. Delivery on time;
4.Provide full sets of documents as customer’s requirements.
After-sale service
1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
