Concert Rental Led Display P3.91 Full Color LED Display Screen FCC
TENBULL full color HD LED screen module size 250*250mm LED display screen
product detail
1.Input Voltage:100-240V
2.Application:commercial stage, commercial LED display screen background
3.pixel pitch:2.604mm 3.91mm 4.81mm
4.IC:SMD2121 SMD1921
5.Supplier Type:Original manufacturer
product feature
1.It can display pictures in high definition, with high contrast, good display consistency,low brightness and high gray performance.
2.Its visual angle is very wide, and you can see the picture clearly from any angle.
3.The lock catch structure makes the splicing operation simple and convenient, which can achieve seamless connection and solve the visual defect of splicing large screen images.
4.This display screen is waterproof, anti leakage, anti earthquake, anti-corrosion, anti-aging, high temperature resistance and other characteristics.
5.Low brightness and high gray, high-definition display: low brightness and high gray, uniform display gray, good display consistency, high contrast, non-reflective surface and high-definition display.
6.This display can be used to display images such as text, pictures and videos.
P3.91 Outdoor Led Screen parameter
| Application: | Outdoor, Advertising |
| Color: | Full Color |
| Panel Size: | 250mm*250mm |
| Pixel Pitch: | 3.91mm |
| Supplier Type: | Original manufacturer |
| Media Available: | datasheet, Photo, EDA/CAD Models, Other |
| Place of Origin: | Guangxi, China |
| Model Number: | LIGHTALL- Outdoor P2.604 P3.97 P4.87 |
| Brand Name: | TENBULL |
| Pixels: | 3.91mm |
| Specification: | Video Wall, LED Display, LED Screen |
| Display Fuction: | Video |
| Screen Dimension: | Customized Size |
| Lifespan: | 100000h |
| Input Voltage: | 100-240V |
| Refresh Rate: | 3840Hz |
| LED Configuration: | SMD1921 |
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Model | P3.91 | |
| LED MOQ | 1pc | |
| LED IC | 1921/2020/2121 | |
| LED Power | 50W | |
| Input Voltage | AC85~265V | |
| Frequency Range | 50Hz – 60Hz | |
| Power Factor | >98 | |
| Power Efficiency | >85% | |
| Luminous Efficiency | 70~110LM/W | |
| Color Temperature | WW | 2700-3500K |
| PW | 4000-5500K | |
| CW | 6000-7000K | |
| CRI | WW | Ra>70 |
| PW | Ra>75 | |
| CW | Ra>75 | |
| Lamp Efficiency | >85% | |
| Lumens Output | WW | 4200lm |
| PW | 4400lm | |
| CW | 4600lm | |
| Beam Angle | 120° | |
| Working Temperature | -40℃ ～ +55℃ | |
| Storage Temperature | -25℃ ～ +65℃(25℃best) | |
| Life span | >100000hrs | |
| Certification | CE, RoHS, FCC | |
| Housing Color | Black | |
| package | 67*36*29cm (4pcs/box) | |

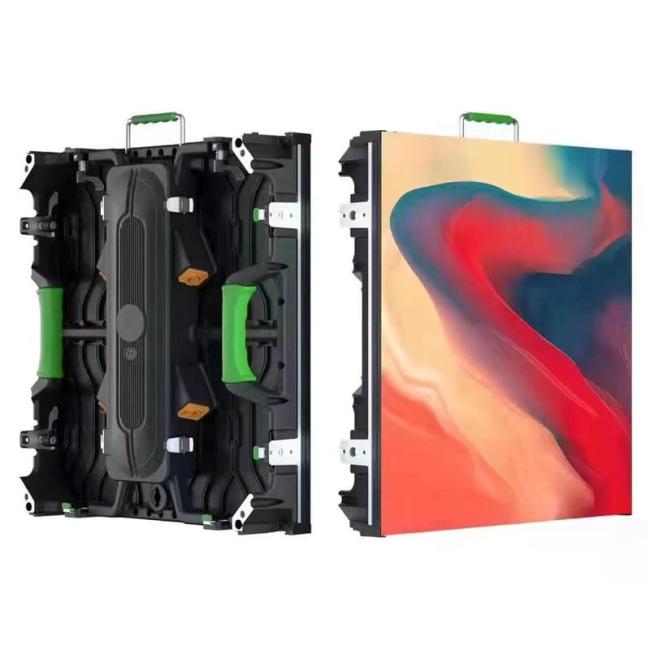

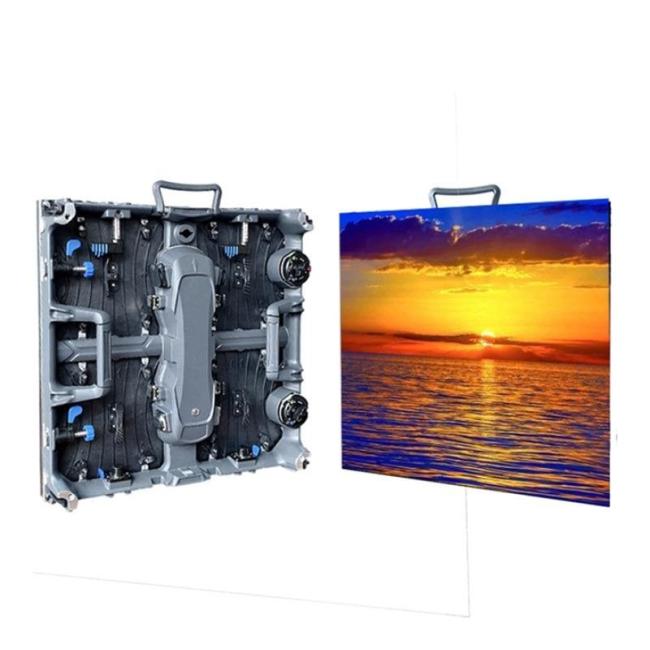

Product Photo
