SMD1921 Colorful LED Screen Floor Tiles Pixel Pitch 3.91mm ISO
colorful floor tile TENBULL P4.81 P3.91 P2.064 LED display pixel pitch 3.91mm
Quick detail
1.Pixel pitch:4.81mm
2.Color:full color 1RGB full color
3.Module weight 1.2kg
4.IC:SMD1921/2121
5.The best perspective:160°(W) 120°(H)
Product detail
1.The controllability of the whole process from materials to finished products and from R&D to production has become the guarantee of product quality reliability.
2.Convenient maintenance with modular design, stable display effect, more convenient installation and maintenance, and live maintenance.
3.Application: It is suitable for fixed installation occasions in military and public security, energy, urban management, public information publishing platform, traffic and transportation, broadcasting and television, cinema, enterprise video conference system, medical treatment, education and other fields.
4.Wide viewing angle has a good viewing angle. The wide viewing angle of 160 is consistent with the height of each LED, and it has a large viewing angle both horizontally and vertically, which is suitable for environments with wide horizontal distribution and large height drop.
5.With standard size design, it is convenient for users to calculate the whole screen area and quickly assemble it in various ways.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

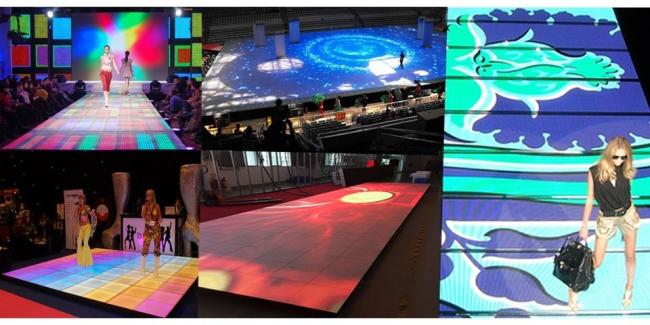

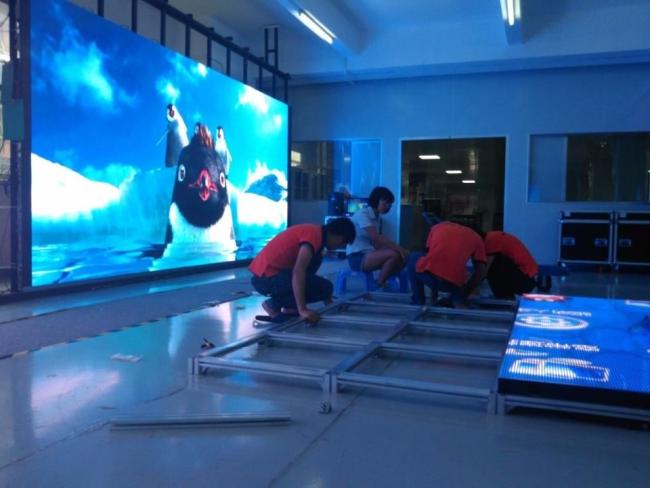

Product photo
FAQ
Q1.What pixel pitch should I choose on my display?
A:It is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q2.What about your Pre-sale service and After-sale service?
A:For Pre-sale service: We have a professional sales team and professional technical team who are willing to answer your question 24 hours on line. We can offer a set of solution for your project! For After-sale service: We can instruct you how to use, adjust the screens, and common maintenance with spare parts. Also, we can send engineers to your country if you need.
Q3.How to proceed an order for led light?
A:Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
