1R1G1B LED Lighted Floor Panels HD Rental P4.81 P3.91 P2.064
TENBULL P4.81 P3.91 P2.064 HD rental display screen lighted floor panels
Quick detail
1.Pixels:4.81mm
2.Module size:250*250mm
3.Cabinet size:500*500mm/500*1000mm
4.Best viewing distance:4m～50m
5.LED type:SMD:1921
Product detail
1.The edited content of the computer is sent to the system control card, which shows that the edited content is easy to operate.
2.This LED display uses non-linear point by point correction technology, so that the text is clearer and more hierarchical.
3.Die-cast aluminum box has the advantages of light weight, reasonable structure, high precision, light weight and heat dissipation.
4.The standardization of its box design makes the same box size suitable for different pixel display requirements, so that the installation of advertising screen is more convenient.
5.Use high-quality LED display dedicated IC chip design, with good quality.
6.Application: It is suitable for fixed installation occasions in the fields of military and public security, energy, urban management, public information release platform, traffic and transportation, radio and television, cinema, enterprise video conference system, medical treatment, education, etc.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ work:-20℃～+50℃ |
|
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
|
power
|
Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
|
Control syste
|
CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

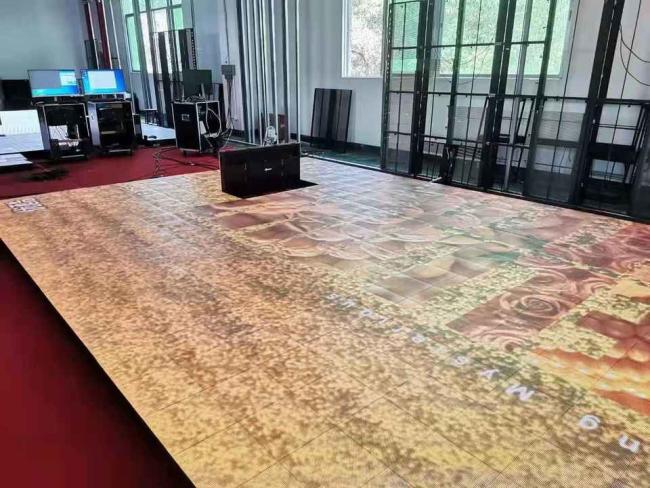

Product photo
FAQ
Q1.What pixel pitch should I choose on my display?
A:It is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q2.What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q3.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
