P4.81 P3.91 High Definition LED Screen Floor Tiles SMD 2121 3.91mm
full color TENBULL P4.81 P3.91 P2.064 LED display SMD 2121 3.91mm screen
Quick detail
1.Pixel pitch:4.81mm
2.Color:full color 1Red Green Blue
3.The best perspective:160°(W) 120°(H)
4.Module weight 1.2kg
Product detail
1.This LED box is a die-cast aluminum box customized from aluminum-magnesium-zinc alloy, which can effectively extend the life of the product.
2.Its thin and light design facilitates the transportation process and installation process.
3.Low brightness and high gray, high-definition display: low brightness and high gray, uniform display gray, good display consistency, high contrast, non-reflective surface and high-definition display.
4.The flat surface, uniform display, good luminous brightness, dreamy clear and delicate display effect give you perfect visual enjoyment.
5.The company also provides customers with relevant maintenance spare parts. All spare parts are modular design, which is convenient for after-sales maintenance.
6.Complete series, can be tailored to meet the different needs of customers.
7.We strictly control the whole process from R&D to production and from materials to finished products to ensure the reliability of product quality.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

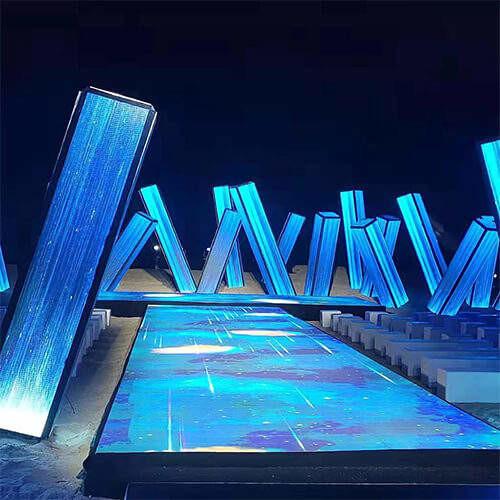

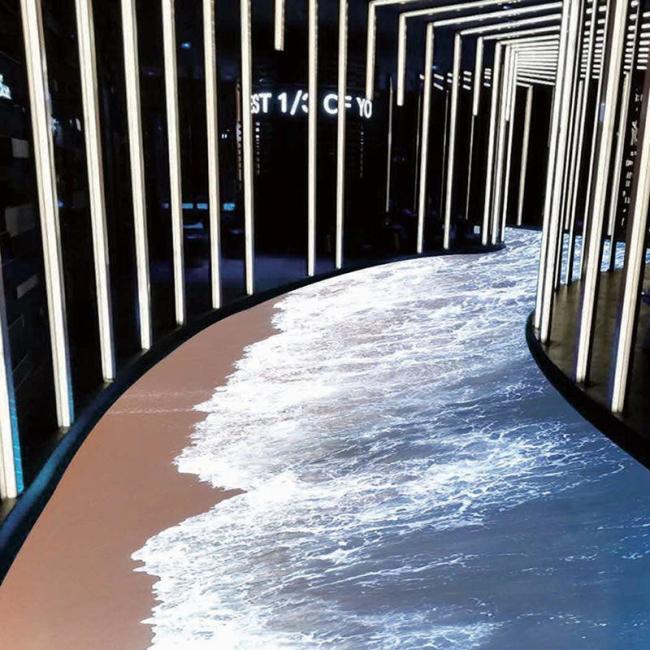

Product photo
FAQ
Q1.How can I place an order?
A:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
Q2.LED Facing Direction
A:LED Facing Direction Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud covers.
Q3.Do you offer a guarantee for the products?
A:Yes, we offer 1 years warranty to our products
