Stage P5 Indoor LED Screen Rental Concert Led Wall Module SMD3528
rental stage led display screen P5 Indoor LED Screen Concert Led Wall Module Size SMD3528
Quick detail
1.Pixel pitch:4.81mm
2.cabinet size:500*500mm/500*1000mm
3.Refresh frequency:≥3840HZ
4.Best viewing distance:4m～50m
Product detail
1.Its visual angle is very wide, and you can see the picture clearly from any angle.
2.It has the characteristics of seamless connection, which can solve the visual defect of splicing large screen images, and the lock catch structure makes splicing operation simple and convenient.
3.The box is made of aluminum-magnesium-zinc alloy customized die-cast aluminum box, which is not easy to deform and anti-corrosion. Fast heat dissipation.
4.It is applicable to indoor media, performance display screen, exhibition, advertising signs, hotels, stations, airports, etc.
5.Adopt automatic glue machine to glue the module, so as to ensure uniform, smooth and waterproof glue filling of the module.
6.This LED box has the characteristics of waterproof, insulation, anti leakage, anti earthquake, anti-corrosion, anti-aging, corona resistance, high temperature resistance, etc.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ work:-20℃～+50℃ |
|
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
|
power
|
Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
|
Control syste
|
CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

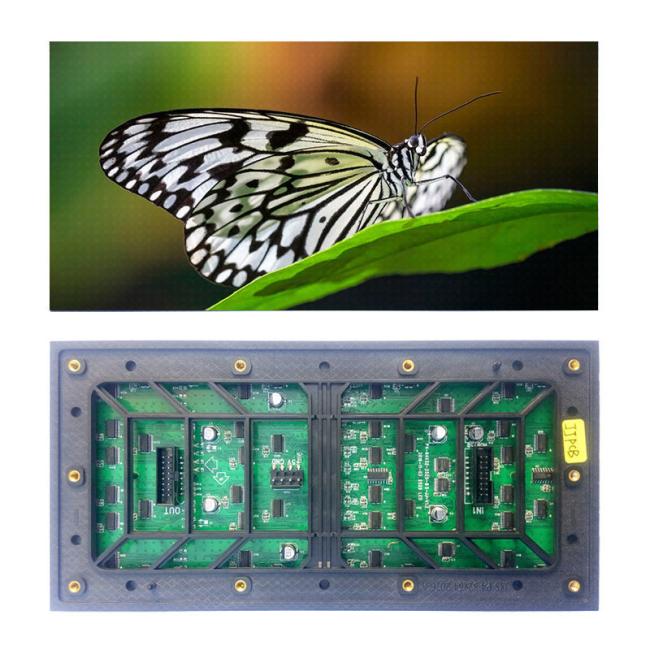

Product photo
FAQ
Q1.How does your factory do regarding quality control?
A:Quality is priority.Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication.
Q2.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Q3.What technical supports can you offer?
A:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
