HD Indoor Full Color Stage LED Display Screen Shockproof 1R1G1B P4.81
HD LED screen TENBULL P4.81 P3.91 P2.064 indoor full color led display screen pixel pitch 3.91mm
Quick detail
1.Pixels:4.81mm
2.Tube chip color:1R1G1B
3.Module weight 1.2kg
4.Pixel density:43264dot/m2
5.Best viewing distance:4～50m
Product detail
1.It has a high refresh rate, and the picture is clear and natural, with no flicker or delay.
2.It has the characteristics of seamless connection and can solve the visual defect of splicing large screen images.
3.It has the characteristics of leakage-proof, anti-corrosion, waterproof and moisture-proof, earthquake-proof, anti-aging, and high temperature resistance.
4.The modules are all coated with three-proof paint to protect the circuit board and related equipment from environmental influences, and have the characteristics of insulation, moisture-proof, leakage-proof, shock-proof, corrosion-proof, aging-proof, corona-proof, high-temperature resistance, etc.
5.The cabinet adopts die cast aluminum box made of aluminum magnesium zinc alloy, which is not easy to deform, resistant to corrosion, has fast heat dissipation, and extends the service life of the product. The design is light and thin, which is convenient for transportation and installation.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

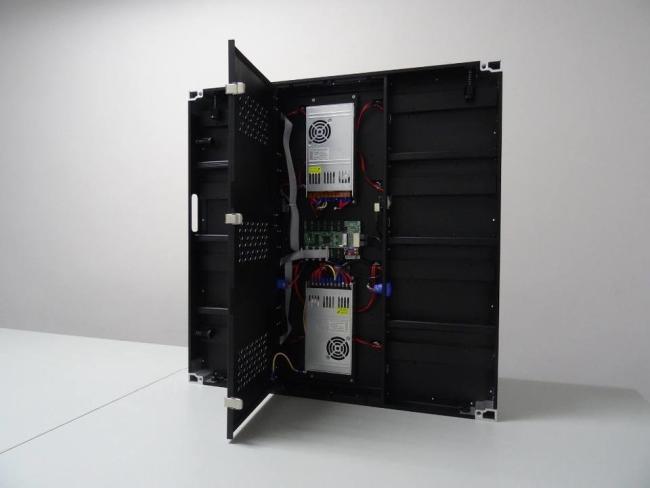

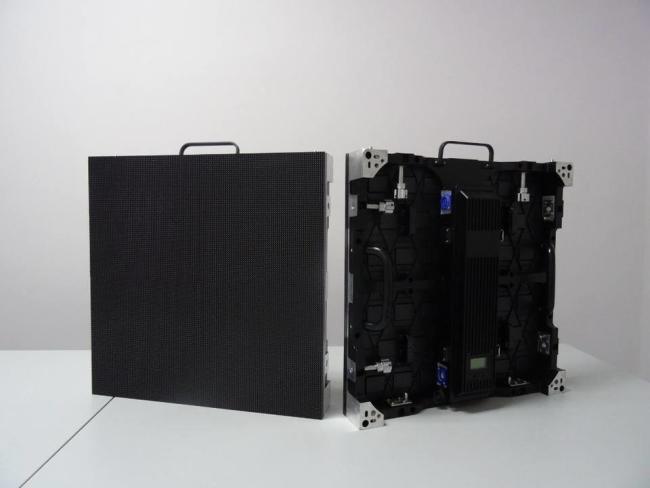

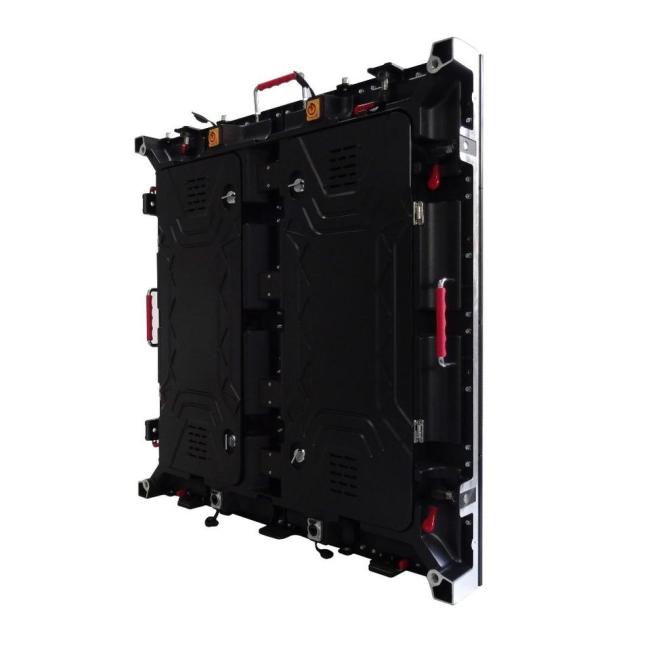

Product photo
FAQ
Q1.What pixel pitch should I choose on my display?
A:It is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q2.Can I have sample firstly?
A:Yes, we can send one unit panel as sample for your check and test before order..
Q3.What kind of display do we provide?
A:We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
