Low Brightness Commercial Outdoor LED Display Screen Pixel Pitch 4.81mm 60W
TENBULL P4.81 P3.91 P2.064 commercial advertising led display full color pixel pitch 4.81mm
Quick detail
1.Color:full color 1RGB
2.Pixels:4.81mm
3.Module size:250*250mm
4.Cabinet:500*1000mm
5.Thickness:85mm
Product detail
1. Using high-quality LED chip, low brightness attenuation, good wavelength stability, large angle, good flatness, strong antistatic.
2.The box design uses a unified standard, so that the same box size can be adapted to the requirements of different pixel display, the installation is more convenient, the box is thinner and better, and the transportation cost is saved.
3.The mask design has better visual effects, non-reflective surface, large viewing angle, good viewing effect, and good display effect.
4.This product adopts in-line adapter board design, simplifying the wiring in the box, effectively reducing the problem of poor connection, and reducing signal attenuation and interference, and high-quality light-emitting devices ensure high reliability and high life.
5.The locking structure makes splicing easy and tool-free.
6.Silent design, no air conditioning, no fan installation, eliminate noise, reduce power consumption, save power and energy.
7.It has real-time error detection, that is, it can independently detect whether each LED is open without adding additional external components, and can eliminate problems such as crosses.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

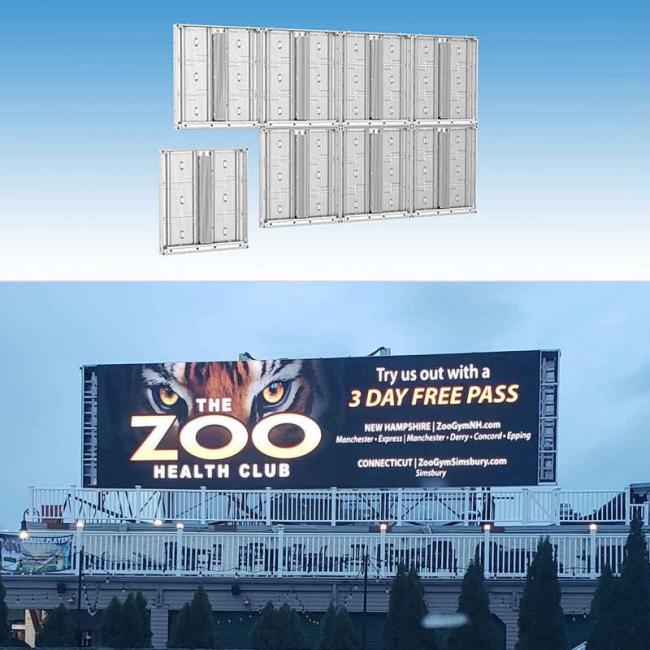

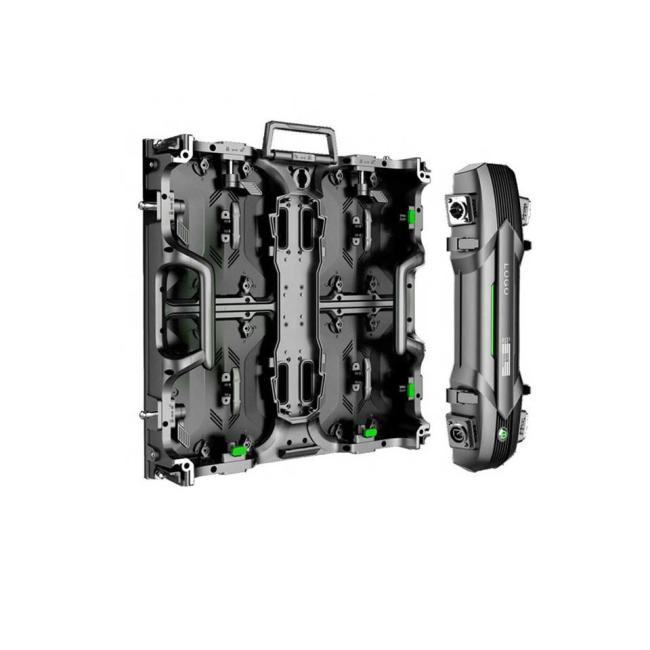

Product photo
FAQ
Q1.LED Facing Direction?
A:Outdoor LEDs facing east or direct west sunlight will require higher lamination than those facing north or south. The larger outdoor billboards and configurations must be equipped with automatic light sensors to automatically adjust brightness in reaction to sunlight and cloud covers.
Q2.What about the warranty?
A:One year warranty.
Q3.What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
