FM6353 Large Outdoor LED Display Screen Size 500*500mm SMD 1921
TENBULL P4.81 P3.91 P2.064 large outdoor display screen size 500*500mm SMD 1921
Quick detail
1.Pixels:4.81mm
2.Color:full color red green
3.Pixel density:43264dot/m2
4.LED lamp: SMD1921
5.Best viewing distance:4-50M
Product detail
1.It is applicable to the video broadcast promotion of text, graphics and multimedia programs.
2.The non-linear point by point correction technology makes this LED display screen display more hierarchical content, clearer text and better display effect.
3.Quality assurance: It is more convenient to install and maintain by using domestic well-known brand luminescent materials and high-quality IC chips.
4.Easy to operate, use the computer to edit the content sent to the system control card, you can display the edited content, easy to operate.
5.The box body is almost the same size, which is convenient for assembly. After assembly, the surface is flat and the effect is good.
6.This LED display has a high resolution, which can perfectly display delicate colors and high-definition image quality.
7.Each LED has a consistent height and a large visual angle both horizontally and vertically, which is suitable for environments with wide horizontal distribution and large height drop.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

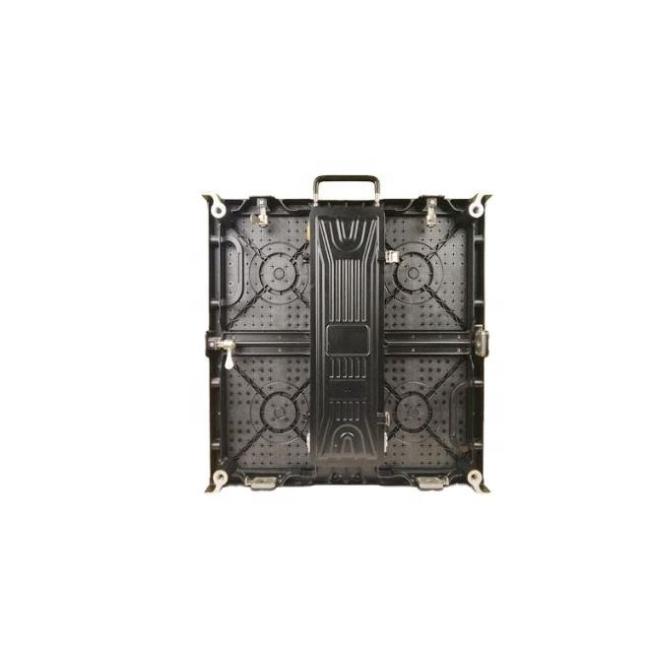

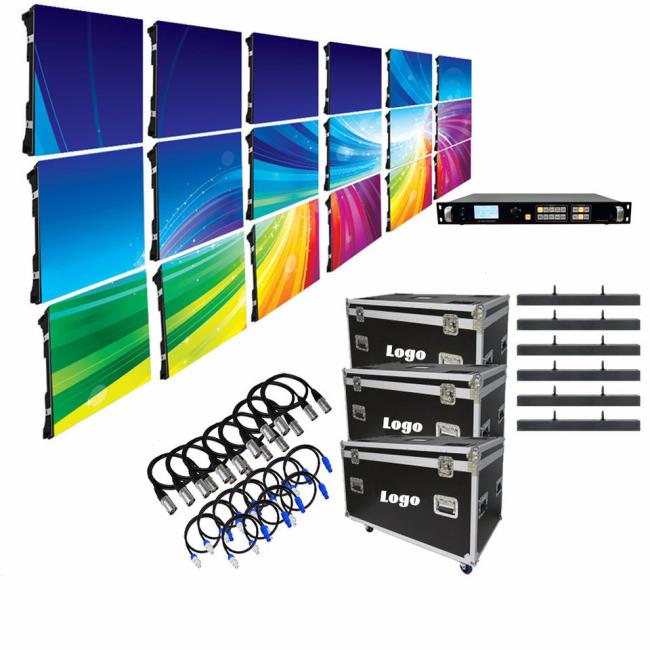

Product photo
FAQ
Q1.To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q2.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Q3.Are you a manufacturer or trading company?
A:We are a manufacturing and trading company, with its own independent production of products.
