Commercial Waterproof Rental Stadium LED Screen 4.81mm P4.81 P3.91
rental waterproof led display screen TENBULL P4.81 P3.91 P2.064 P1.875 led screen 4.81mm
Quick detail
1.Pixel pitch:4.81mm
2.LED type:SMD1921
3.Scan mode:1/13 scan
4.Module size:250mm*250mm
Product detail
1.In terms of format without format restrictions, the display mode can be arbitrarily arranged by the user; Can display text, charts, images, animation, video information; And the amount of information displayed is not limited.
2.Easy maintenance Modular design, stable display effect, more convenient installation and maintenance, and live maintenance.
3.Using mask design, better visual effect, non-reflective surface, large viewing angle, good viewing effect, good display effect.
4.Using high-quality light-emitting materials, high-quality LED display, special IC chip design, with small package, high brightness, large angle, antistatic and other characteristics; Noiseless high-power power supply; The whole screen is fanless design, no noise, low power consumption, and can be used in the temperature range of 0°C~55°C.
5.This LED display screen has good flatness, soft touch, consistent ink color of the mask, and high contrast of the entire display screen.
6.Silent design, no need to install empty fans, eliminate noise, reduce power consumption, save energy and save power.
7.Applications: LED displays can be used for fixed installations in energy, urban management, public information release platforms, traffic and transportation, large cinemas, monitoring systems, concerts, commercial advertisements, medical care/education and other fields.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ work:-20℃～+50℃ |
|
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
|
power
|
Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
|
Control syste
|
CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

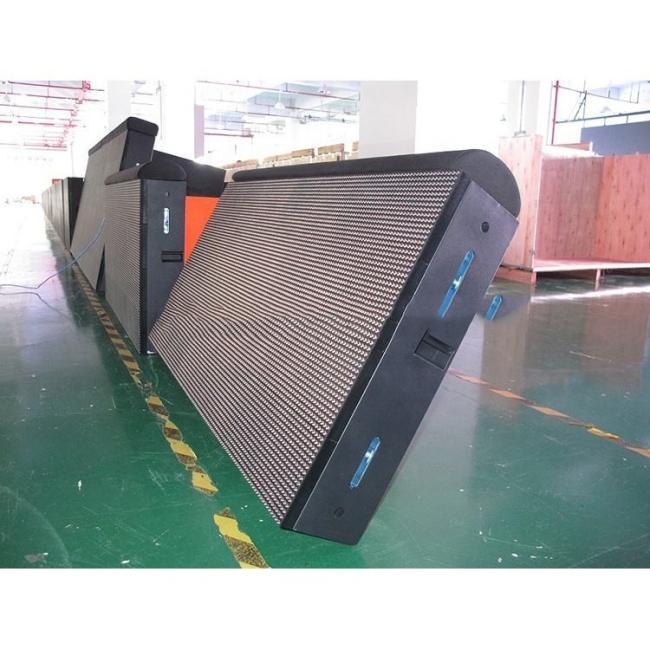

Product photo
FAQ
Q1.How to deal with the faulty?
A:Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%; Secondly, during the guarantee period, we will send a new module with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
Q2.What technical supports can you offer??
A:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
Q3.What kind of display do we provide?
A:We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
Q4.What about your Pre-sale service and After-sale service?
For Pre-sale service: We have a professional sales team and professional technical team who are willing to answer your question 24 hours on line. We can offer a set of solution for your project! For After-sale service: We can instruct you how to use, adjust the screens, and common maintenance with spare parts. Also, we can send engineers to your country if you need.
