RGB Full Color Super Thin Stadium LED Screen P4.81 P3.91 P2.064 P1.875
super thin TENBULL P4.81 P3.91 P2.064 P1.875 led display RGB full color stadium
Quick detail
1.Pixel pitch:4.81mm
2.ILED type:SMD1921
3.Pixel resolution:52dots(W)*52dots(H)
4.Module size:250*250mm
5.Driving device:Constant currentdriver IC
Product detail
1.The maintenance of the product is very convenient. We adopt a modular design, the display function is stable, the installation and maintenance are simpler and time-saving, and it can be repaired with power on.
2.Low brightness and high gray, good display consistency.
3.The splicing error is small, easy to install, and the shape can be customized according to needs
4.TUse is compatible with async; When the control computer fails, it does not affect the work and can still display playback normally.
5.Its design is novel and generous, with the characteristics of high refresh and high gray scale, and it has a unique black light design, with fine photographic effects.
6.Compatible with asynchrony, it can support synchronous control and asynchronous control at the same time; When the control computer fails, it can still display playback normally.
7.The LED display screen of this product is widely used and is suitable for fixed installation occasions in the fields of military and public security, energy, urban management, public information release platform, traffic and transportation, radio and television, cinema, enterprise video conferencing system, medical care/education and other fields.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ work:-20℃～+50℃ |
|
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
|
power
|
Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
|
Control syste
|
CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

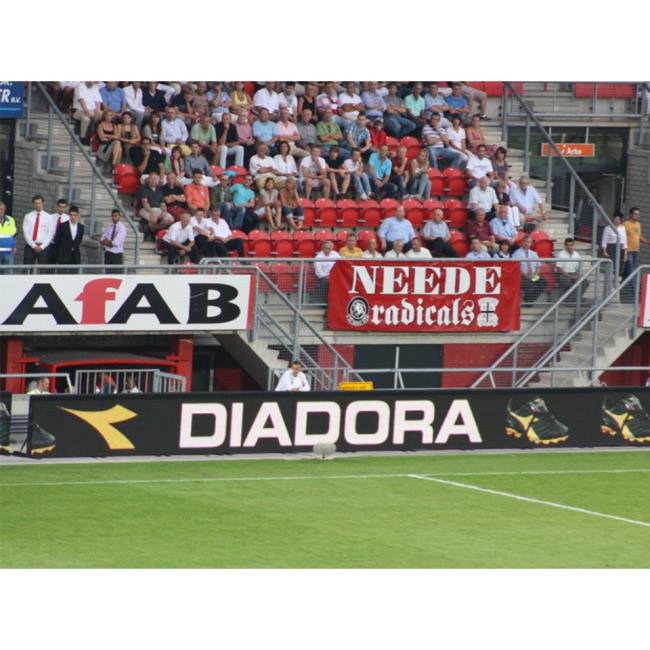

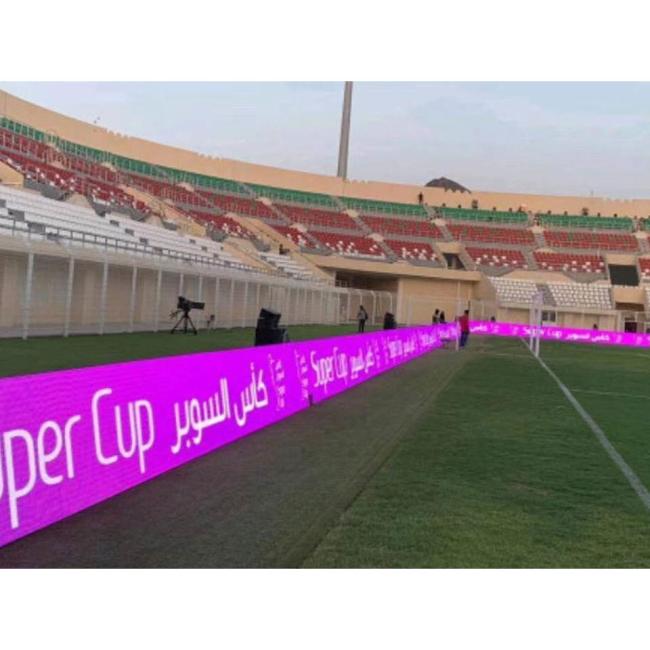

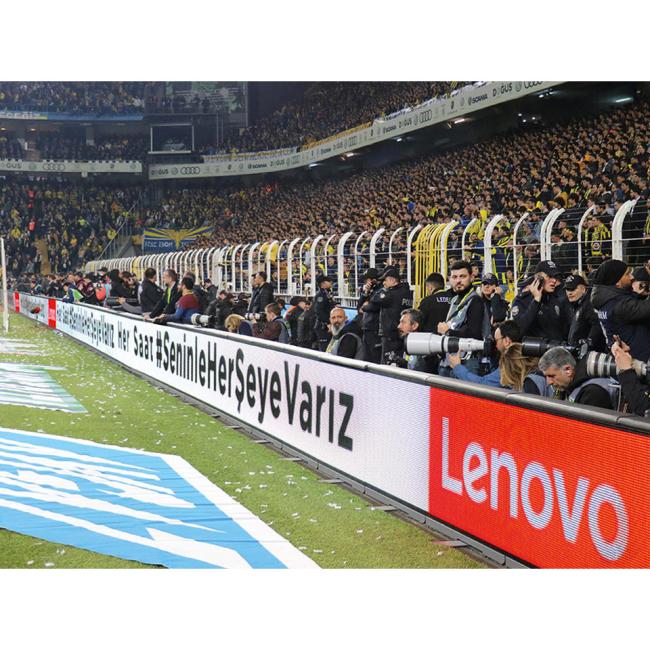

Product photo
FAQ
Q1.How to deal with the faulty?
A:Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%; Secondly, during the guarantee period, we will send a new module with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
Q2.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Q3.What pixels should I choose on my display?
We will design a suitable pixel pitch for customers according to viewing distance, display size, desired effect and customer's budget.
Q4.What about your quality?
A.The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q5.How to install it after we receive it?
A.We will offer instructions to guide you on installation, and also software setting up photos or steel construction drawings.
