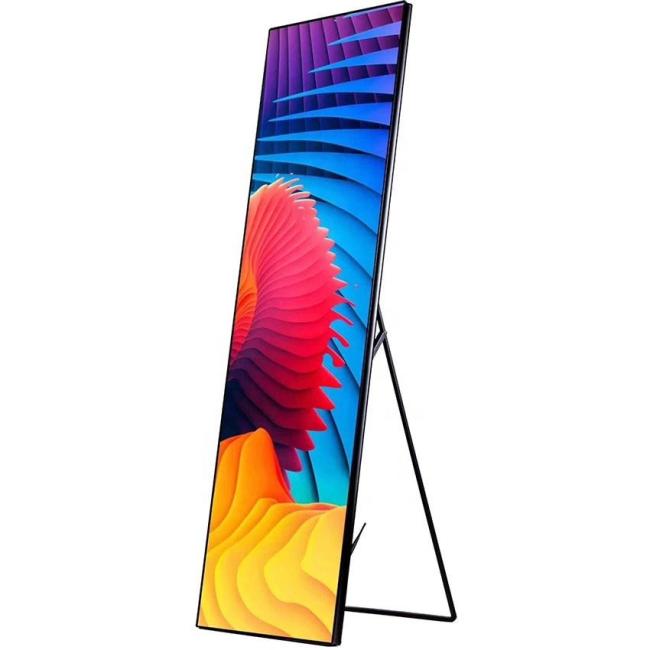

SMD1921 Programmable Mirror LED Screen P2.064 P1.875 LED Signs Indoor
LED display TENBULL P2.064 P1.875 SMD1921 2121 programmable led signs indoor
Quick detail
1.Pixel pitch:1.875mm
2.Color:full color 1R1G1B
3.Brightness:500-600 nits
4.Best viewing distance:1.9M-15M
5.Processing depth:14 bits
Product detail
1.This display screen has the characteristics of strong luminous brightness. When the sun shines directly on the screen surface, the display content is still clearly visible.
2.This product is designed to be thin and lightweight, making it easy to transport and install.
3.The box adopts aluminum-magnesium-zinc alloy customized die-cast aluminum box, which can effectively extend the life of the product.
4.It has the characteristics of insulation, moisture-proof, anti leakage, shockproof, anti-corrosion, anti-aging, corona resistance, high temperature resistance, etc.
5.This LED display has good flatness, consistent ink color of the mask, and high contrast throughout the display.
Parameter
| Module Parameter | |
| Parameter | Value |
| Pixel Pitch | 1.875mm |
| Pixel configuration | 1R1G1B |
| LED type | 1515 SMD 3-in-1 |
| Brightness | 500-600 nits |
| Color temperature | 7500±500K |
| Viewing angle | H: 110°; V:110° |
| Unit box size | 300*168.75mm |
| Cell box resolution | 160*90 Dots |
| Cell box pixel density | 14400pixels |
| Driving Method | Constant flow drive,1/45 scan |
| Processing depth | 14 bits |
| Gray scale | 16384 levels per color |
| Color | 281.4 trillion |
| Brightness control | Manual/Automatic |
| Maximum contrast | 3000:1 |
| Video frame rate | 50/60 Hz |
| Rate refresh | 2800~3840 Hz |
| Input voltage | 220VAC |
| Input power frequency | 50Hz |
| Input power <max> | ≤450W/m2(22.5W/cabinet) |
| Input power <typical> | ≤135W/m2(7W/cabinet) |
| Life Time | ≥100,000 Hours |
| Maintenance mode | Modulpower card front maintenance |
| Recommended viewing distance | 1.9M-15M |
| Weight | 315g |
| Diagonal | 13.5〞 |
| Aspect ratio | 16:9 |
| Material | Die-casting Aluminum |
| Ingress protection | IP20 |
| Operating Temperature/Humidity | 0℃~+45℃/10~90%RH |
| Storage Temperature/Humidity | -10℃~+55℃/10~90%RH |
| Rigging form | Fixed with support bracket |
| Input signal | SDI,RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
| Data interconnection | ( L≤100m )；( single mode fiber ) ( L≤20km ) |
| Product certification | CCC |
