Waterproof Naked Eye 3D LED Display Unit 1RGB P4.81 P3.91 P2.064
TENBULL P4.81 P3.91 P2.064 P1.875 3D waterproof led display unit size 250*250mm
Quick detail
1.Color:Colorful 1R1G1B/colorful
2.Pixel pitch:2.064mm
3.Module: 250*250mm
4.Cabinet: 500*500/500*1000mm
5.thickness:85MM
Product detail
1. Using high-quality LED chip, low brightness attenuation, good wavelength stability, large angle, good flatness, strong antistatic.
2.The box design uses a unified standard, so that the same box size can be adapted to the requirements of different pixel display, the installation is more convenient, the box is thinner and better, and the transportation cost is saved.
3.It has the characteristics of anti-static, dust-proof and good heat dissipation, and can work in any climate.
4.For high shutter photography, this product can achieve no flicker, no color block, and efficient live broadcast.
5.It has comprehensive functions. With program editing and playing software, you can edit, add, delete and modify text, graphics, images and other information at will. The content of the arrangement is stored in the control card, and the information is automatically displayed in cycles according to the program list.
6.The non-linear point by point correction technology makes this LED display screen display better, with a stronger sense of content hierarchy and clearer text.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

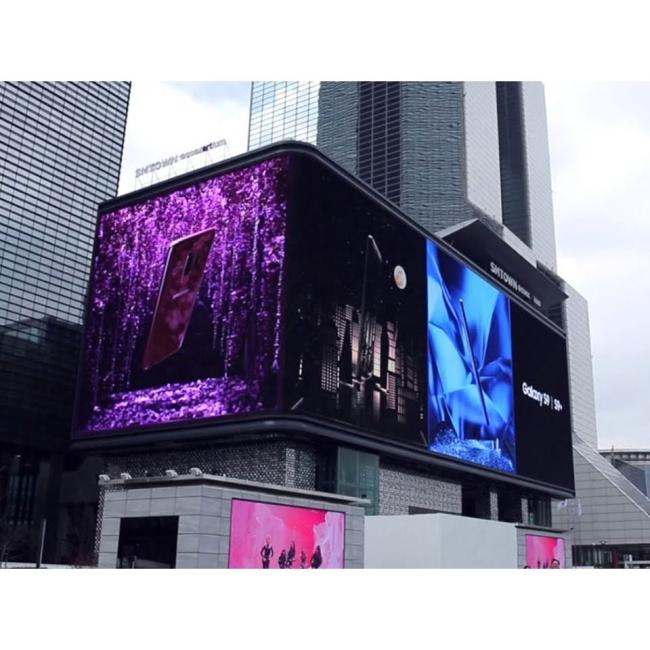

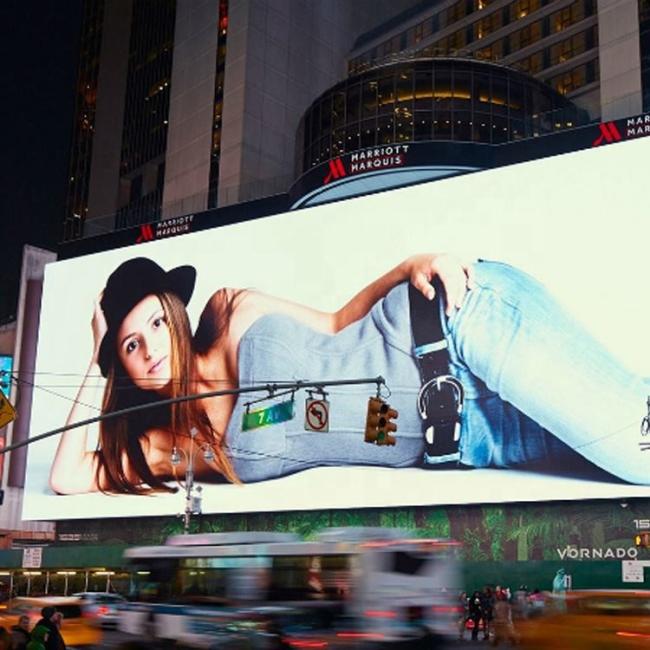

Product photo
FAQ
Q1.What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2.What about the warranty?
A:One year warranty.
Q3.Can I have a sample order for the LED display?
A:Yes, we welcome sample orders to test and check quality. Both for the module or the whole screen.
