1R1G1B Indoor Advertising LED Display Screen P4.81 P3.91 LED 3D Display
advertising led display screen TENBULL P4.81 P3.91 P2.064 P1.875 full color indoor outdoor led display
Quick detail
1.Color: full color red green blue
2.Pixel Pitch:3.91 4.81
3.Cabinet: 500mm*1000mm,500mm*500mm
4.MTBF: ≥9000hours
Product detail
1. The product features an in-line interposer board design that reduces poor connectivity and reduces signal attenuation and interference.
2.Easy maintenance Modular design, stable display effect, more convenient installation and maintenance, and live maintenance.
3.It can work around the clock with high refresh rate, vivid color and clear picture.
4.Suitable for long-distance transportation, shockproof test is carried out before shipment to ensure that the display screen has no poor contact after long-distance transportation.
5.Compatible with asynchrony, it can support synchronous control and asynchronous control at the same time; When the control computer fails, it can still display playback normally.
6.Use with asynchronous compatibility, can support synchronous control and asynchronous control at the same time; When the control computer fails, it does not affect the work and can still display and play normally.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

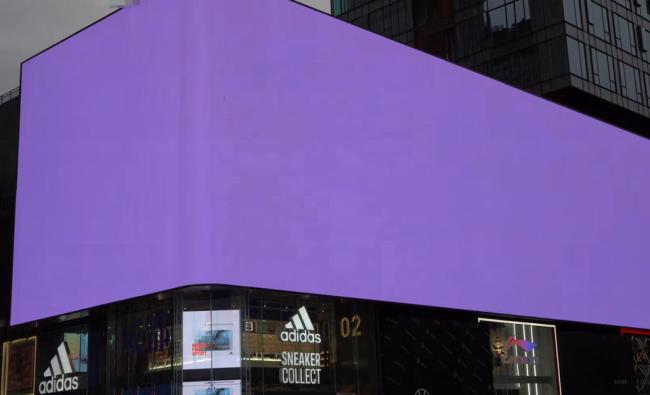

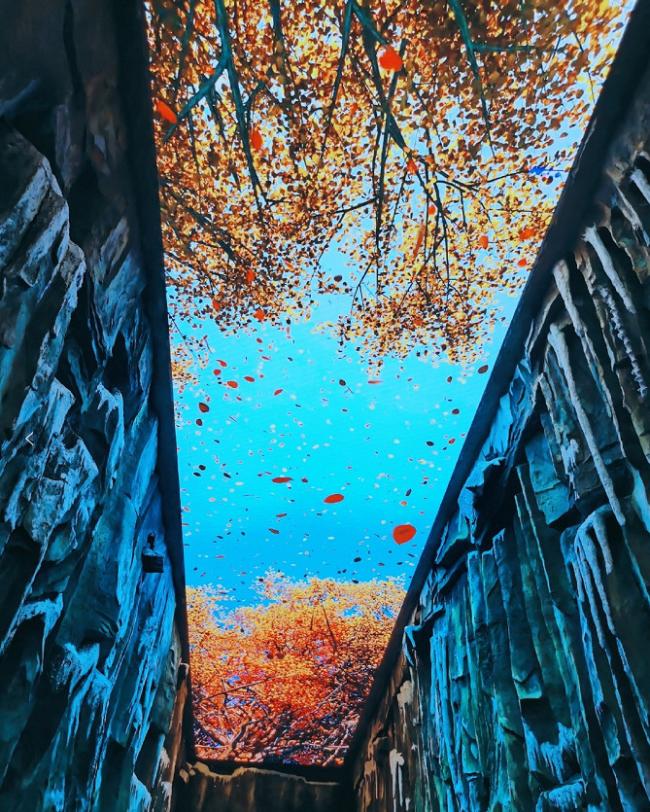

Product photo
FAQ
Q1.Do you give any discounts?
A:Prices are directly affected by the quantity. Simple ratio's, cost more to produce small qty and samples orders then largerones. We have many ways to help our partners when starting the sample processes. Make sure to ask your Key Account MGR on how we can make you save some charges.
Q2.Can we make any size of led display?
A:YES, but we suggest you take large size because it is better for outdoor advertising
Q3.When will you make the delivery?
A:We can make the delivery within 10-12 working days for the led modules and 15-18 days for the led finished screen according to the size and quantities of your order.
