Shockproof Commercial Advertising 3D Outdoor Screen SMD2020 P2.064
TENBULL P4.81 P3.91 P2.064 P1.875 commercial advertising led display professional 3D screen outdoor
Quick detail
1.Color: Red Green Blue
2.Pixel pitch:3.91/2.064mm
3.Cabinet Size: 500mm*1000mm/500mm*500mm
4.MTBF: ≥9000Hours
Product detail
1. This display screen has the characteristics of low power consumption, light weight, and high refresh rate, which can show fine photographic effects.
2.Use high-quality LED display dedicated IC chip design, with good quality.
3.It has the characteristics of anti-static, dust-proof and good heat dissipation, and can work in any climate.
4.The standardization of its box design makes the same box size suitable for different pixel display requirements, so that the installation of advertising screen is more convenient.
5.Die-cast aluminum box has the advantages of light weight, reasonable structure, high precision, light weight and heat dissipation..
6.The use of conformal paint better protects the circuit board and its related equipment from the erosion of the environment; It has good high and low temperature resistance; After curing, it becomes a transparent protective film, which has superior insulation, moisture-proof, leakage-proof, shockproof, dust-proof, anti-corrosion, anti-aging, corona resistance and other properties, and better protects the circuit board.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

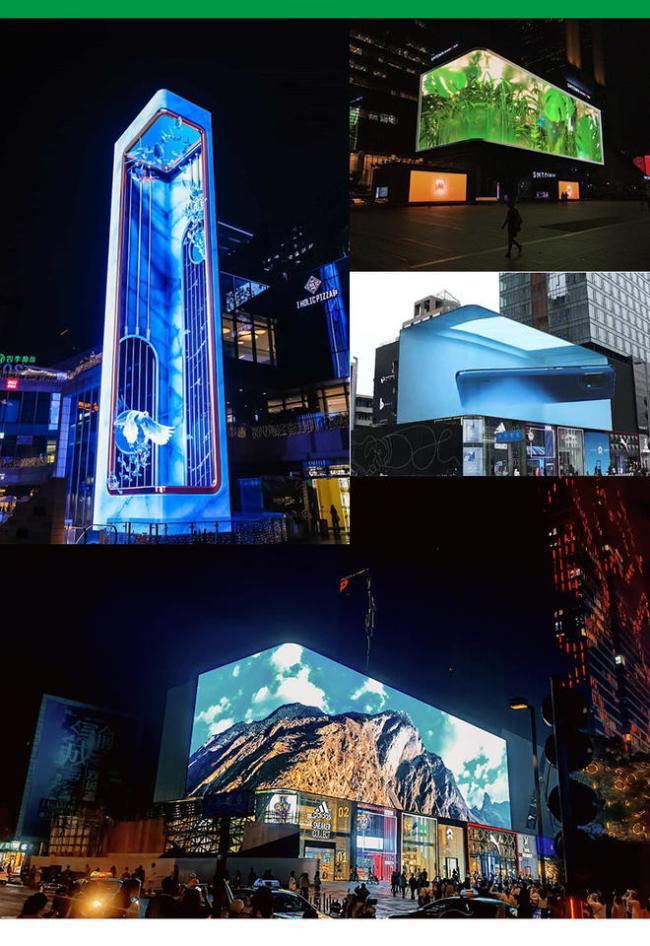

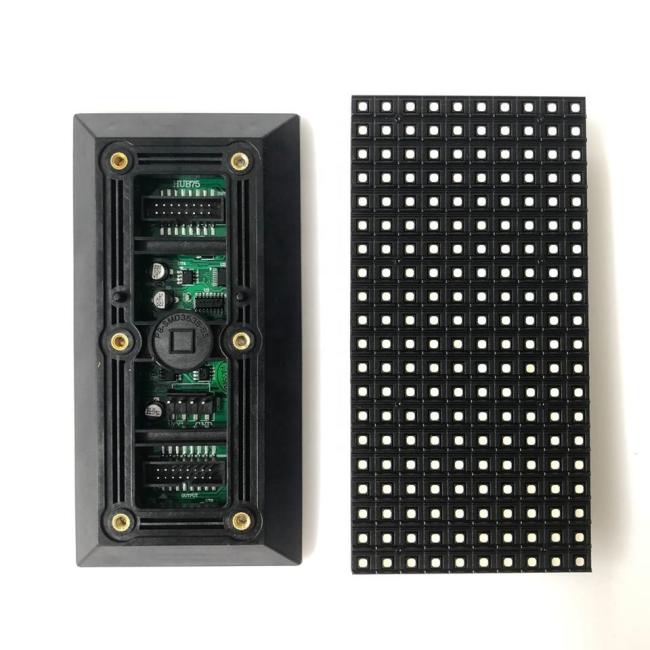

Product photo
FAQ
Q1.Do you give any discounts?
A:Prices are directly affected by the quantity. Simple ratio's, cost more to produce small qty and samples orders then largerones. We have many ways to help our partners when starting the sample processes. Make sure to ask your Key Account MGR on how we can make you save some charges.
Q2.Can I have sample firstly?
A:Yes, we can send one unit panel as sample for your check and test before order.
Q3.When will you make the delivery?
A:We can make the delivery within 10-12 working days for the led modules and 15-18 days for the led finished screen according to the size and quantities of your order.
