RGB Naked Eye 3D LED Display P3.91 P2.064 Custom LED Display Screen
custom shape led display screen TENBULL P4.81 P3.91 P2.064 P1.875 pixels 3.91mm 4.81mm
Quick detail
1.Color:full color 1RGB
2.Module size:250*250MM
3.Opration Humidity:10%-95%
4.Cabinet: 500*500/500*1000mm
5.Best viewing distance:4-50m
Product detail
1. It has low brightness and high gray performance, uniform gray scale display, high contrast, non reflective surface, and high-definition display.
2.Because it has a high refresh rate, the picture is clear and natural, with no flicker, no delay and no mosaic; And it changes the picture more quickly, and the color display is more symmetrical.
3.Wide viewing angle: the screen can be viewed from a wide range, and the pictures and videos seen from any angle are clear and natural.
4.It has the characteristics of seamless connection and can solve the visual defect of splicing large screen images.
5.Application scenario: indoor media, performance display screen, new product release, exhibition, sign, information display, hotel, station, airport, etc.
6.This display screen is waterproof, anti leakage, anti earthquake, anti-corrosion, anti-aging, high temperature resistance and other characteristics.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ work:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
power
| Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
Control syste
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

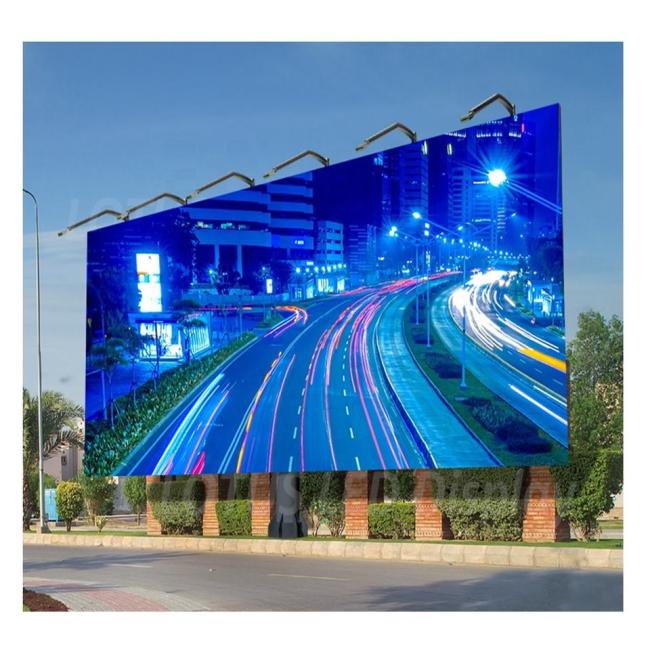

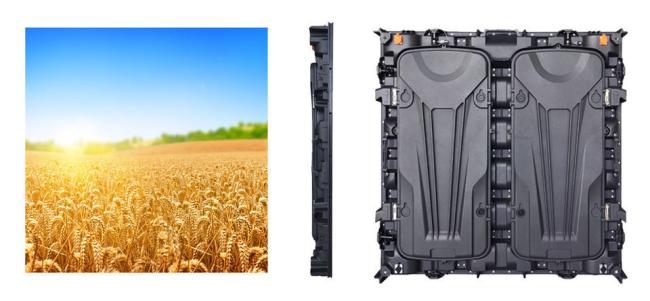

Product photo
FAQ
Q1.What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2.What about the warranty?
A.Yes, we offer 1 years warranty to our products
Q3.What technical supports can you offer?
A:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
