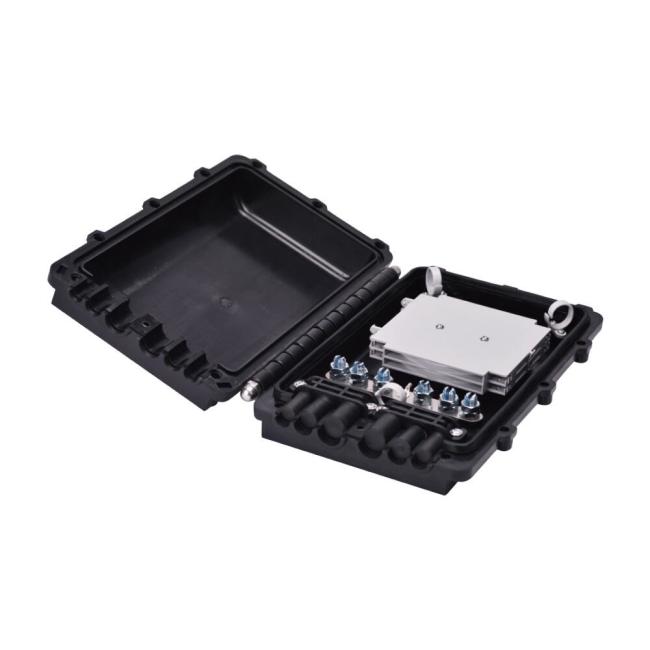

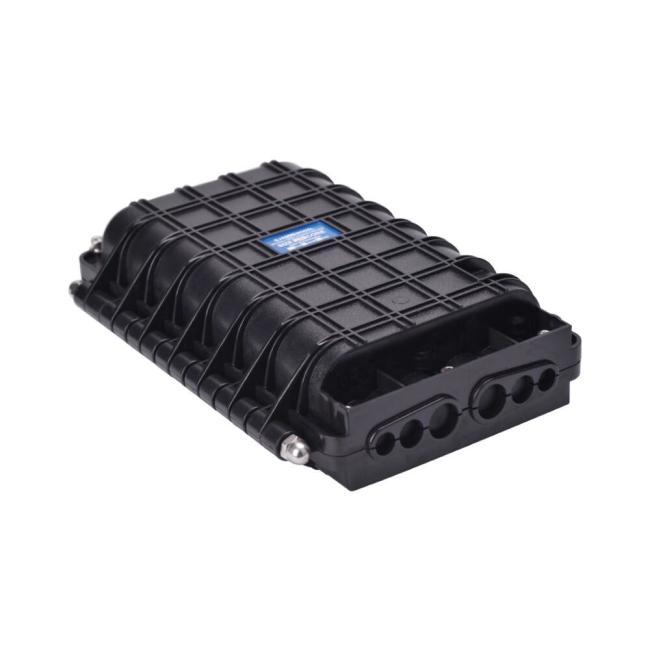

Horizontal Type 3 Inlet 3 Outlet 48 Core Inline Type Fiber Optic Splice Closure

Product Description

Optical splitter closure provides space and protection for the fiber optic cable splicing and joint.
Fiber optic closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.

Features

1). High quality PC+ABS material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.
2). Solid structure, perfect outline, thunder, erosion and adding resistance.
3). Strong and reasonable structure with mechanical sealing structure, can be opened after sealing and cab be reused.
4). Well water and dust proof, unique grounding device to ensure the sealing performance, convenient for installation.
5). The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.

Description

Dimension:320mm*210mm*85mm
Capacity of FOSC:Bunchy:12-96(cores) Ribbon:up to 144(cores
Cable entry ports:6 pieces
Diameter of Cable:Φ8mm～Φ20 mm
Assemmbling method:Aerial,Pipeline,Underground,hand-holes
Protection level:IP68
Outter carton size:660*340*390mm
Inner carton size:330*210*90mm
number of Packing:12 pcs/ctn
weight:2000~2500g/pcs

Advantage

Waterproof /Anti oxidation
Flame retardant/Earthquake resistant
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability.
Precise connector

Specification
