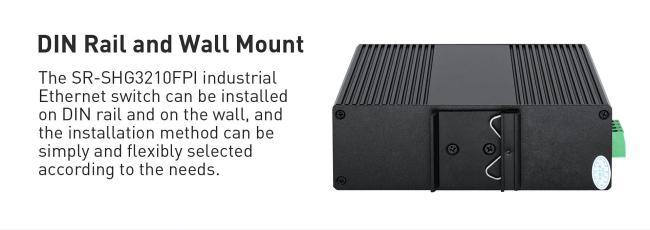

Din-Rail Dual Power 8-Port PoE+ Gigabit L2 Ring Managed Industrial Switch With 4 SFP Slots Uplink For Outdoor
Price:
Negotiation
MOQ:
20
Delivery Time:
5-8 work days
Brand:
Sirivision/ OEM/ODM
Product Description

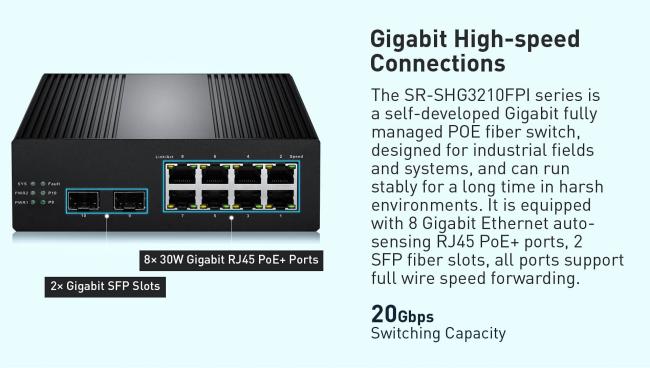

8-Port PoE+ Gigabit L2 Ring Managed Industrial Switch
Input Voltage: 12V-57VThe switch supports a wide input voltage range of 12V-57V, ensuring stability and reliability in various power supply conditions. This feature makes it suitable for use in different countries and regions.

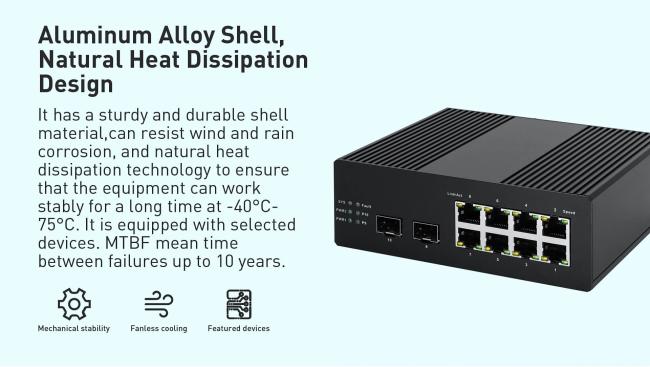

Working Temperature: -40℃-75℃
The Industrial Smart Switch is built to withstand extreme temperatures, making it suitable for use in harsh industrial environments. With a working temperature range of -40℃ to 75℃, it can function seamlessly in both hot and cold conditions.
Soft Features:

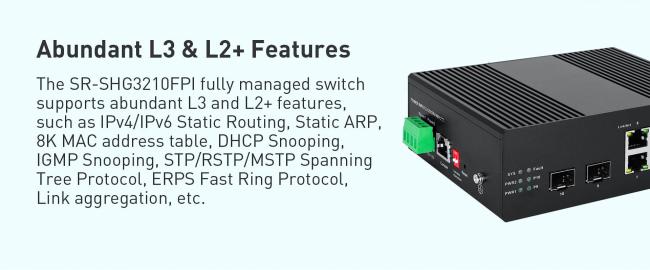

| L3 Features | IPV4/IPV6 | ||||
| Dynamic ARP | |||||
| L2 Features | Flow Control | ||||
| 802.3x (full duplex) | |||||
| Back pressure (half duplex) | |||||
| Link aggregation | |||||
| Spanning Tree | 802.1D (STP),802.1w (RSTP),802.1s (MSTP) | ||||
| ERPS,BPDU Filtering | |||||
| Self-loop detection | |||||
| Automatic Edge Port | |||||
| VLAN | Port based VLAN(4k) | ||||
| MAC address-based VLANs | |||||
| protocol based VLAN | |||||
| Voice VLAN | |||||
| Monitoring VLANs | |||||
| IEEE802.1q VLAN,QinQ (IEEE 802.1ad),GVRP | |||||
| 4096 static VLANs | |||||
| multicast | IGMP Snooping(v1,v2,v3) | ||||
| Multicast VLAN, 1024 multicast groups | |||||
| MLD Snooping V1/V2 | |||||
| Multicast VLAN Registration (MVR) | |||||
| Industrial Ring Network | ERPS Ring<20ms | ||||
| QoS | 8 priority queues per port | ||||
| TOS, DSCP, 802.1p priority field rewrites | |||||
| Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP | |||||
| ACL | L2/L3/L4, MAC-based, IP-based, port-based, VLAN-based | ||||
| Security Features | IEEE 802.1X certification | ||||
| Storm Control | |||||
| DHCP Snooping | |||||
| Dynamic ARP Check | |||||
| BPDU,SSH v1/v2 | |||||

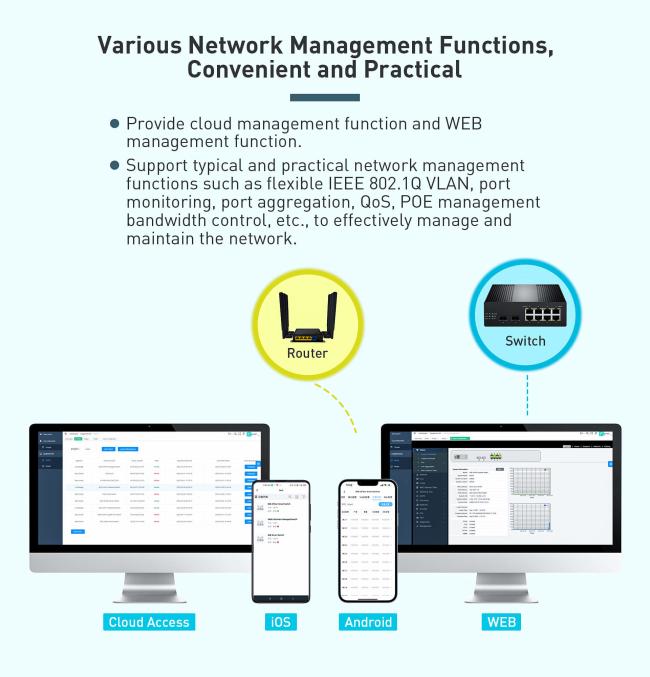

| Management | Supported CLI, Console, SNMP v1/v2/V3, Web, RMON management | ||||
| Diagnosis | mirror Many-to-One | ||||
| UDLD,System Log (RFC3164) | |||||
| System Diagnosis,Port Diagnostics,Network Diagnosis | |||||
